Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
High-efficiency adsorbents are used, with strong adsorption capacity and wear resistance, ensuring stable dew point and no powdering during long-term use;
The heater is equipped with pressure protection to prevent the heater from dry burning, which increases the service life of the heater.
Low operating noise;
High-performance pneumatic valves are used;
Fully electronic programmable controller is used;
Automatic pressure charging function ensures the service life of the adsorbent;

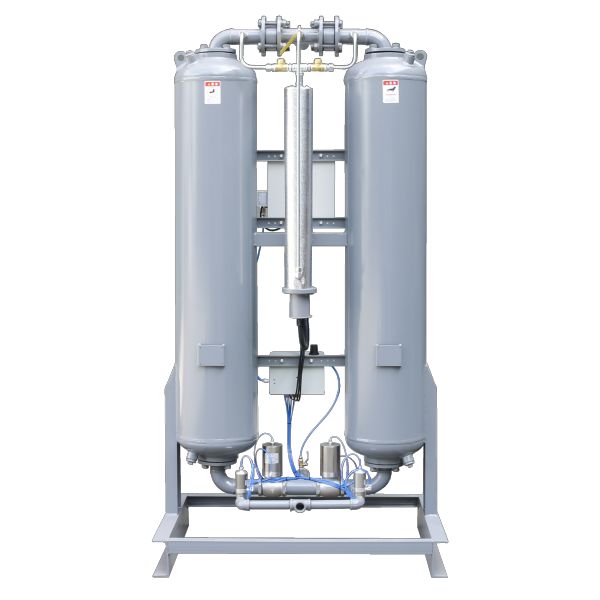

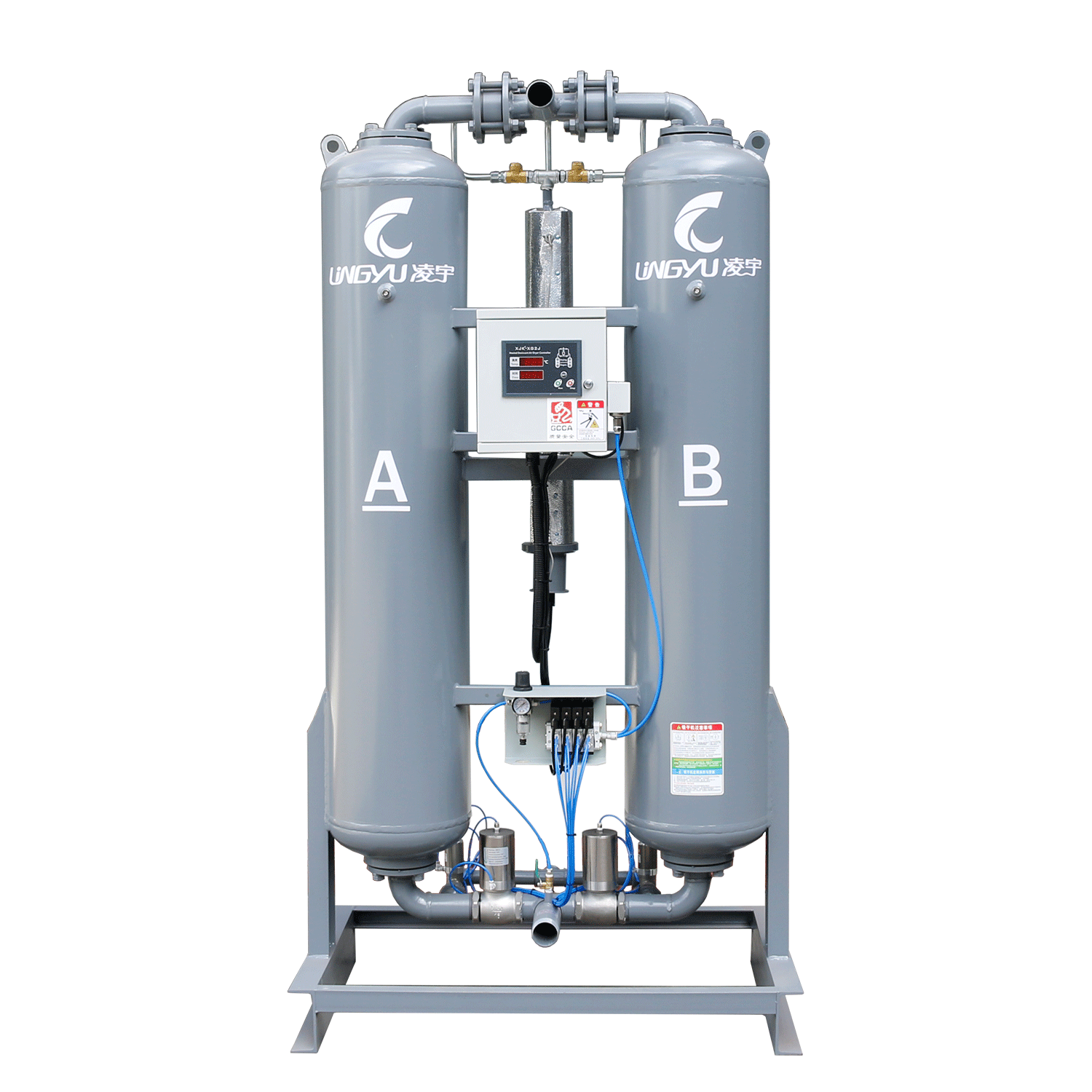

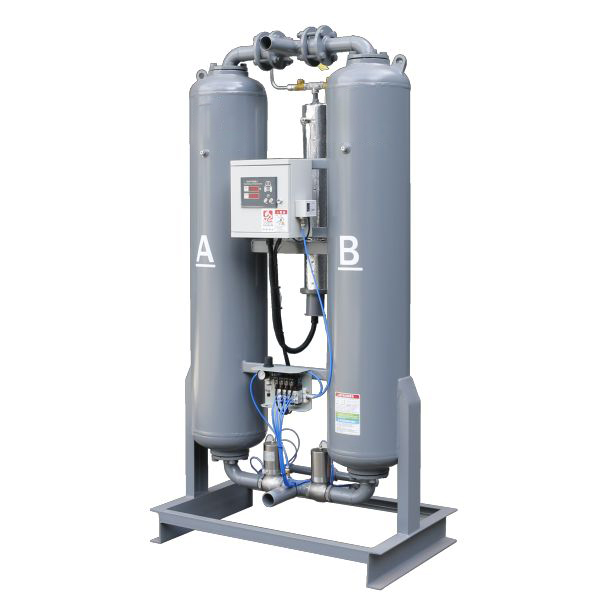

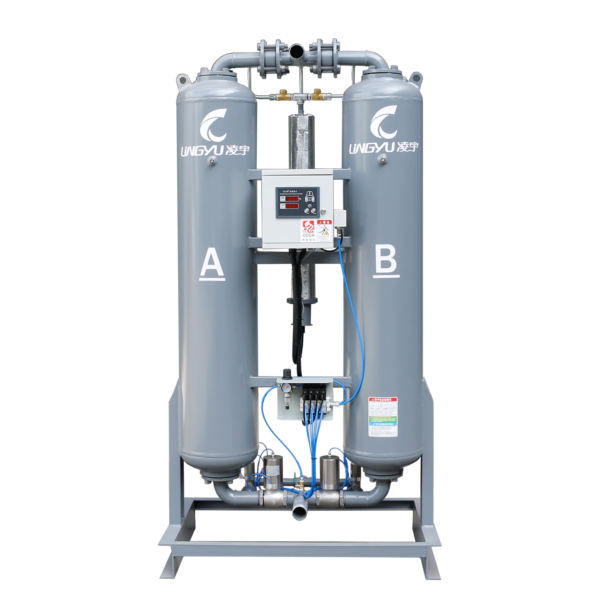

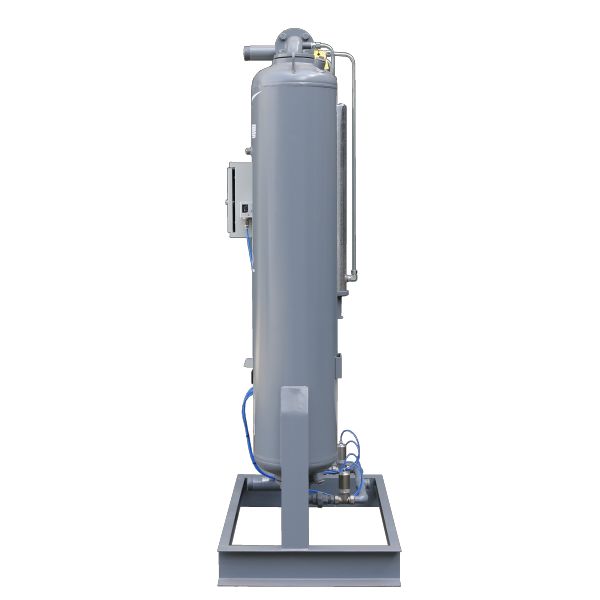

The CH Series Heated Regeneration Adsorption Air Dryer is designed to remove moisture from compressed air systems efficiently and continuously. It uses a dual-tower adsorption process in which one tower dries the compressed air while the other tower undergoes regeneration.
During operation, moisture in the compressed air is absorbed by activated alumina desiccant inside the adsorption tower. At the same time, the saturated desiccant in the other tower is regenerated by heated air, which reduces the amount of regeneration gas required compared with heatless dryers. This heated regeneration method helps lower operating costs while maintaining a stable and low pressure dew point.
By alternating between adsorption and regeneration, the CH Series ensures a continuous supply of clean, dry compressed air for industrial applications that require reliable moisture control and stable system performance.
To ensure stable operation and optimal drying performance, the CH Series Heated Regeneration Adsorption Air Dryer should be used under the following recommended conditions:
For the best drying effect and longer desiccant service life, the dryer should be installed with appropriate pre-filtration and operated under stable inlet conditions. Customized pressure levels and special configurations are also available for specific project requirements.
| Processing Capacity (m³/min) | Voltage (V/Hz) | Total Power (kW) | Inlet/Outlet | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| 1.5 | 380/50 | 0.9 | G1″ | 95 | 670×580×1695 |
| 2.5 | 380/50 | 1.7 | G1″ | 125 | 730×630×1805 |
| 3.8 | 380/50 | 1.7 | G1 1/2″ | 180 | 840×570×1690 |
| 6.5 | 380/50 | 2.5 | G1 1/2″ | 315 | 1020×610×1710 |
| 10.5 | 380/50 | 3.7 | G2″ | 448 | 1160×680×1900 |
| 13.5 | 380/50 | 3.7 | G2″ | 540 | 1160×680×2200 |
| 17.0 | 380/50 | 3.7 | DN65 | 610 | 1195×720×2175 |
| 21.5 | 380/50 | 6.1 | DN80 | 740 | 1280×980×2310 |
| 25.0 | 380/50 | 10.0 | DN80 | 850 | 1350×930×2450 |
| 28.5 | 380/50 | 10.0 | DN80 | 1040 | 1460×1060×2320 |
| 32.0 | 380/50 | 10.0 | DN80 | 1150 | 1460×1060×2510 |
| 37.0 | 380/50 | 10.0 | DN100 | 1280 | 1580×1080×2460 |
| 41.5 | 380/50 | 13.1 | DN100 | 1390 | 1700×1060×2730 |
| 45.0 | 380/50 | 13.1 | DN100 | 1460 | 1765×1160×2550 |
| 50.0 | 380/50 | 13.1 | DN100 | 1590 | 1765×1160×2750 |
| 55.0 | 380/50 | 13.1 | DN100 | 1700 | 1825×1150×2690 |
| 60.0 | 380/50 | 20.1 | DN100 | 1830 | 1825×1150×2790 |
| 65.0 | 380/50 | 20.1 | DN125 | 2050 | 2040×1240×2820 |
| 70.0 | 380/50 | 20.1 | DN125 | 2270 | 2040×1240×2920 |
| 75.0 | 380/50 | 20.1 | DN125 | 2380 | 2136×1240×2930 |
| 85.0 | 380/50 | 27.1 | DN125 | 2650 | 2210×1350×2970 |
| 95.0 | 380/50 | 27.1 | DN150 | 2950 | 2330×1430×3250 |
| 110.0 | 380/50 | 34.1 | DN150 | 3200 | 2450×1430×2980 |
| 130.0 | 380/50 | 42.1 | DN150 | 4700 | 2610×1580×3060 |
| 150.0 | 380/50 | 50.1 | DN200 | 5300 | 2900×1400×3211 |
Note: Customized models are available for air volume above 150 m³/min or for special requirements related to materials, specifications, or inlet temperature. All data is subject to change without prior notice.
In India’s hot climate, seasonal monsoon humidity, and demanding industrial environments, compressed air systems often require deeper drying to protect pneumatic equipment, product quality, and process stability. The CH Series Heated Regeneration Adsorption Air Dryer is designed for applications that need a stable low pressure dew point, continuous-duty operation, and lower regeneration air consumption than heatless systems. With a pressure dew point range of -50°C to -20°C and regeneration gas consumption of only 4%–8%, it is well suited for Indian industrial users that need dependable low-dew-point compressed air with improved operating efficiency.
For the India page, this model is best positioned as a low-dew-point compressed air solution with improved regeneration efficiency. It is especially suitable for pharmaceutical plants, electronics production, food packaging, automotive manufacturing, chemical processing, textile operations, and centralized industrial air systems where both moisture control and long-term operating economy matter. For stricter purity requirements, it should be presented together with the appropriate pre-filtration, fine filtration, and complete air treatment system design.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
Quiet operation with low noise;
Utilizes high-performance pneumatic valves;
Equipped with a fully electronic programmable controller;
Automatic pressure loading function ensures the longevity of the desiccant;
Heater includes pressure protection to prevent dry burning, extending the heater’s service life;
Uses high-performance desiccant with strong adsorption and wear resistance, ensuring stable dew point and preventing powdering during long-term operation.
Ensure safe use in flammable and explosive environments
Resists chemical corrosion and extends service life
Special sealing technology prevents flammable gases or dust from entering the interior of the machine
Regeneration gas consumption can be adjusted, with energy saving and dew point adjustment function
High corrosion resistance
High recycling rate
Easy to clean and maintain
Stable performance
Easy to maintain
Highly efficient pneumatic controller
Intelligent and user-friendly design
