Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).

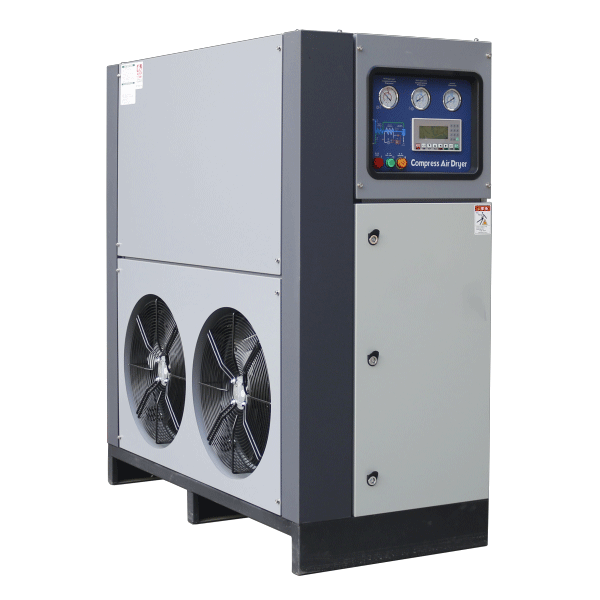

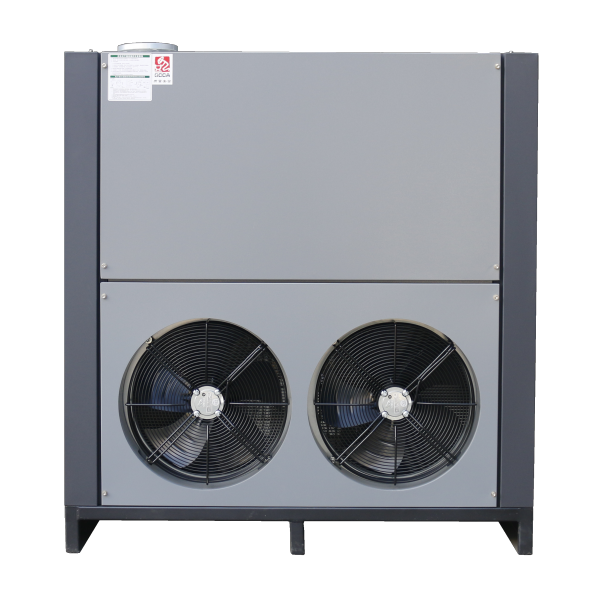

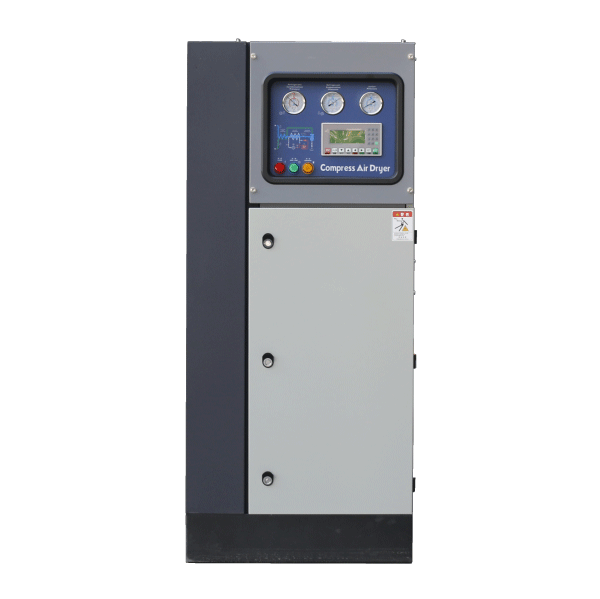

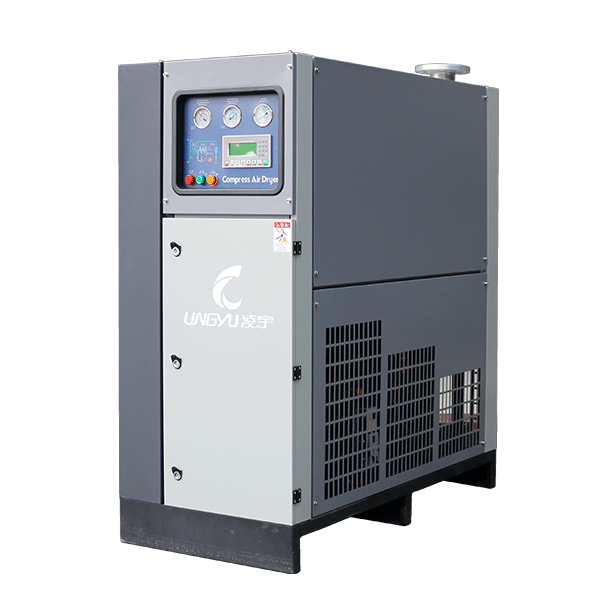

The Refrigerated Air Dryer is designed to provide stable and efficient moisture removal for industrial compressed air systems. It works by cooling hot, moisture-laden compressed air to condense water vapor into liquid, which is then separated and discharged from the system. This process helps deliver clean and dry compressed air to downstream equipment and production lines.
The dryer maintains an outlet pressure dew point of 2°C to 10°C, which is suitable for a wide range of industrial applications. With optional air-cooled or water-cooled configurations, the system can be adapted to different installation conditions and operating environments. Its efficient refrigeration design helps reduce moisture-related damage, improve air quality, and support stable long-term operation.
To ensure stable performance and reliable operation, the refrigerated air dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be installed in a clean, well-ventilated environment and matched to the actual system pressure, airflow, and temperature conditions.
| Processing Capacity (m³/min) | Power Supply (V/Hz) | Total Power (kW) | Air Inlet/Outlet | Dimensions (mm) L × W × H |
|---|---|---|---|---|
| 1.50 | 220/50 | 0.70 | RC1″ | 500 × 380 × 740 |
| 2.50 | 220/50 | 0.79 | RC1″ | 500 × 380 × 740 |
| 3.80 | 220/50 | 0.90 | RC1″ | 520 × 450 × 990 |
| 6.50 | 220/50 | 1.20 | RC1″-z | 520 × 450 × 990 |
| 10.5 | 220/50 | 2.00 | RC2″ | 670 × 560 × 1330 |
| 13.5 | 220/50 | 2.30 | RC2″ | 670 × 560 × 1330 |
| 17.0 | 220/50 | 2.80 | RC1″-1z” | 1200 × 700 × 1480 |
| 21.5 | 380/50 | 3.90 | DN80 | 1460 × 700 × 1480 |
| 25.0 | 380/50 | 4.90 | DN80 | 1480 × 740 × 1480 |
| 28.5 | 380/50 | 4.90 | DN80 | 1480 × 740 × 1600 |
| 32.0 | 380/50 | 5.70 | DN80 | 1480 × 740 × 1600 |
| 37.0 | 380/50 | 7.80 | DN100 | 1640 × 840 × 1750 |
| 45.0 | 380/50 | 8.80 | DN100 | 1640 × 840 × 1750 |
| 55.0 | 380/50 | 10.1 | DN125 | 1740 × 840 × 1750 |
| 65.0 | 380/50 | 10.1 | DN125 | 1890 × 840 × 1803 |
| 75.0 | 380/50 | 11.1 | DN125 | 1980 × 950 × 1990 |
| 85.0 | 380/50 | 13.7 | DN125 | 2220 × 950 × 2063 |
Note: For processing capacities above 85 m³/min, or for special requirements related to specifications, materials, or operating temperature, please contact our company or authorized distributors. All specifications are subject to change without prior notice.
In India’s hot climate, seasonal monsoon humidity, and demanding industrial environments, compressed air systems often require reliable moisture removal to prevent condensate, rust, and unstable air quality. The Refrigerated Air Dryer is designed for industrial users that need stable general-purpose dry air, efficient moisture separation, and long-term operation in a wide range of compressed air systems. With a stable outlet pressure dew point of 2°C–10°C and optional air-cooled or water-cooled configurations, it is well suited for Indian factories where day-to-day condensate control and dependable utility air are important.
For the India page, this model is best positioned as a general-purpose refrigerated dryer for industrial moisture removal, not as an ultra-dry or sterile-air solution. It is especially suitable for food packaging, pharmaceutical utility air, electronics assembly, CNC machining, laboratory support, printing, and centralized plant air systems. That positioning fits both India’s hot, humid operating conditions and the country’s strong base in manufacturing sectors such as electronics, pharmaceuticals, automobiles, textiles, and food processing.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The 1130 SCFM refrigerated air dryer (air cooled) is a high-capacity, energy-efficient solution designed to eliminate moisture from compressed air systems in demanding industrial environments. With a robust air-cooled refrigeration system and a processing capacity of 1130 SCFM, this dryer delivers consistent performance and reliable dew point control to protect downstream equipment and ensure production continuity.
Whether you’re operating in a manufacturing plant, automotive facility, or heavy-duty processing site, the 1130 SCFM refrigerated air dryer (air cooled) guarantees optimal air quality while reducing maintenance costs and energy waste.
The 4238 CFM refrigerated air dryer (water cooled) is a high-capacity, industrial-grade dryer designed to eliminate moisture from large compressed air systems. Built with a powerful water-cooled refrigeration circuit, this dryer ensures reliable and continuous moisture removal with a stable pressure dew point. For industries that demand high airflow rates and dependable air quality, the 4238 CFM refrigerated air dryer (water cooled) is the ideal solution.
Whether operating in petrochemical, textile, food processing, or manufacturing sectors, the 4238 CFM refrigerated air dryer provides exceptional performance, energy efficiency, and long-term durability.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1 bar;
Frequency conversion energy saving: Brand inverter, frequency conversion range 30Hz~90Hz, by changing the electromechanical frequency of the dryer to match the actual working conditions;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensure the machine runs in the best state, and standard RS-485 communication interface.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient flow cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1bar;
Low dew point: The new optimized integrated three-in-one design and unique water separation design make the dew point more guaranteed;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensuring that the machine runs in the best state, and standard RS-485 communication interface.
