Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).

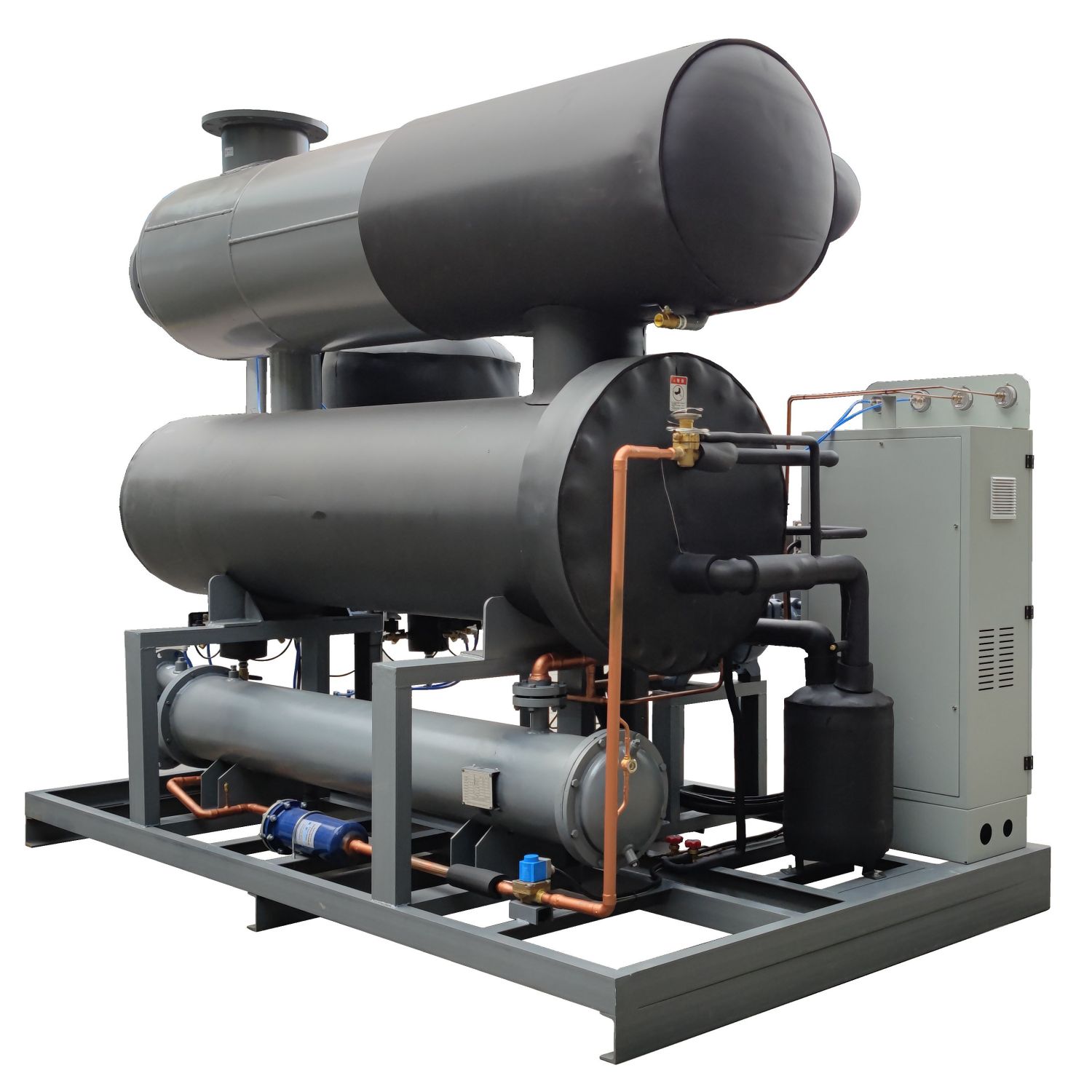

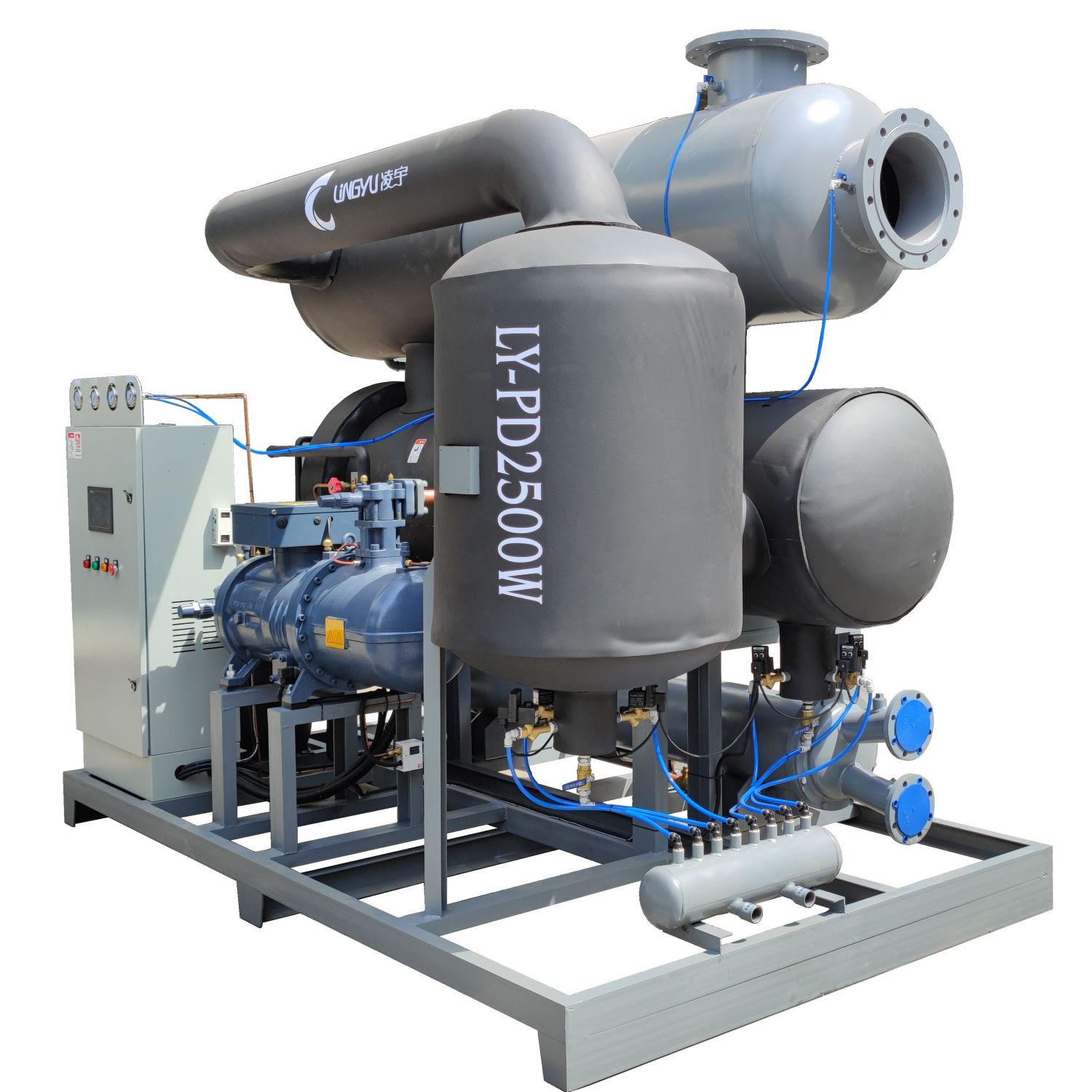

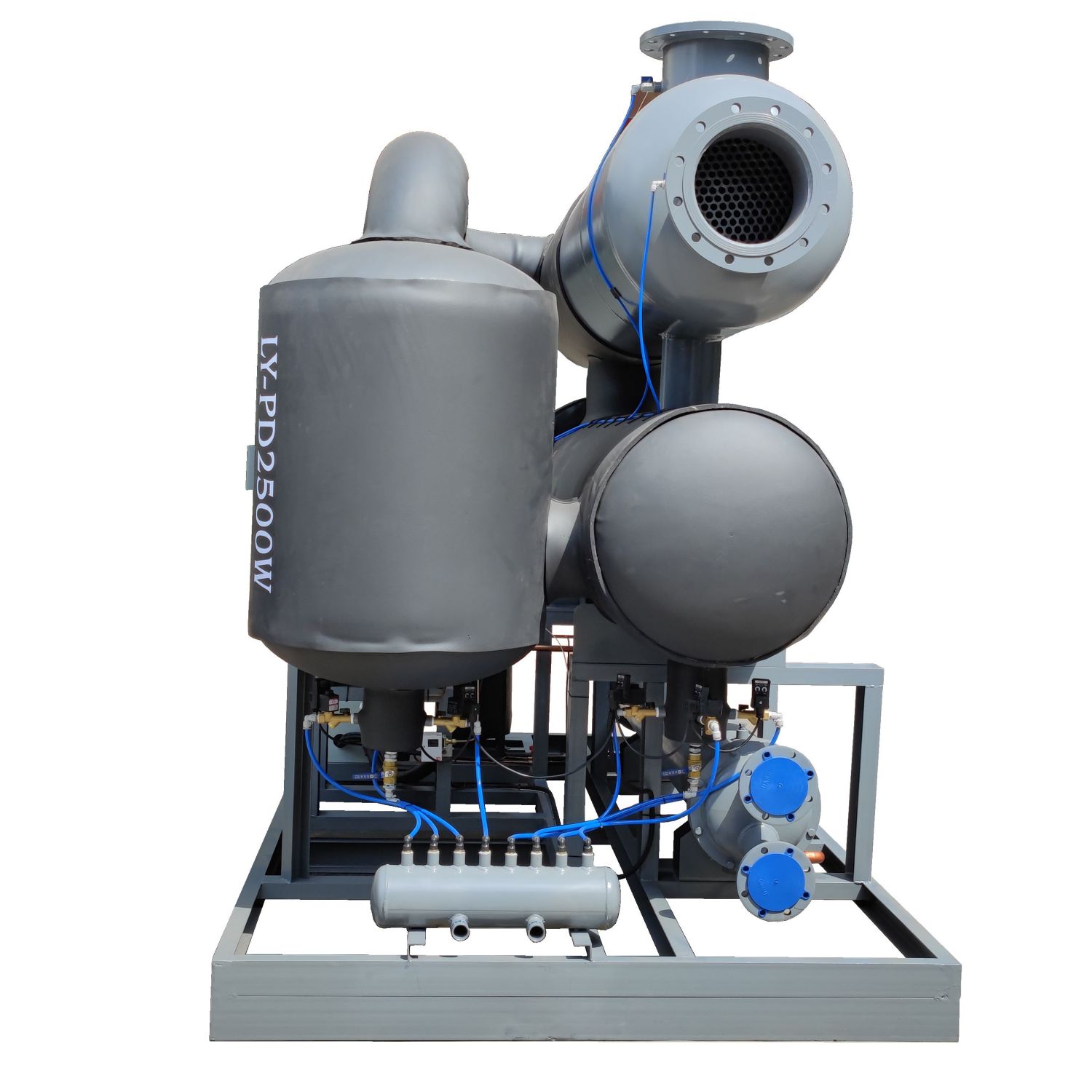

The 8830 CFM refrigerated air dryer (water cooled) is a top-tier industrial solution engineered to remove moisture from large-scale compressed air systems. Built for ultra-high capacity applications, this dryer ensures consistently dry air with a stable dew point and superior thermal control using an advanced water-cooled condenser system.
Designed for 24/7 operation in the most demanding environments, the 8830 CFM refrigerated air dryer (water cooled) guarantees optimal air quality, minimal pressure loss, and extended equipment lifespan across heavy-duty industries.
The 8830 CFM Water-Cooled Refrigerated Air Dryer is designed for high-volume compressed air systems that require stable moisture removal, reliable dew point control, and continuous industrial operation. It uses a refrigeration drying process to cool compressed air, condense water vapor, and remove liquid moisture before the air enters downstream equipment and production lines.
During operation, hot and moisture-laden compressed air enters the dryer and passes through the internal heat exchange and refrigeration system. As the air temperature drops, water vapor condenses into liquid water, which is then discharged automatically through the drain system. The dried compressed air leaves the system with a stable pressure dew point of 2–10°C, helping protect pipelines, pneumatic tools, valves, instruments, and processing equipment from corrosion, contamination, and moisture-related failure.
Thanks to its water-cooled design, this model delivers efficient heat dissipation and stable performance even in hot climates, enclosed plant rooms, or continuous-duty industrial applications. Its heavy-duty construction, digital control panel, and industrial-grade refrigeration components make it a dependable solution for large-scale compressed air treatment.
To ensure stable drying performance and long-term reliability, the 8830 CFM Water-Cooled Refrigerated Air Dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be installed in a clean indoor environment with stable power supply, proper ventilation, and reliable cooling water conditions. Pre-filtration and after-filtration are recommended to improve compressed air quality and help protect both the dryer and downstream equipment.
| Parameter | Specification |
|---|---|
| Model | 8830 CFM Refrigerated Air Dryer (Water Cooled) |
| Air Flow Capacity | 8830 CFM |
| Cooling Method | Water Cooled |
| Pressure Dew Point | 2–10°C |
| Refrigerant | R407C / R134a |
| Max Operating Pressure | 10 bar |
| Power Supply | 380V / 3Ph / 50Hz |
| Water Connection Size | 2″ BSP |
| Air Inlet/Outlet | 6″ ANSI Flanged |
| Dimensions (L × W × H) | 3500 × 1850 × 2400 mm |
| Net Weight | 1500 kg |
This model combines high airflow capacity, stable dew point performance, efficient water-cooled operation, and durable industrial construction, making it suitable for demanding plant environments with continuous compressed air demand.
In India’s hot climate, seasonal monsoon humidity, and heavy-duty industrial environments, large compressed air systems often require dependable moisture removal to protect pipelines, valves, pneumatic equipment, and production processes. The 8830 CFM Water-Cooled Refrigerated Air Dryer is designed for high-volume compressed air systems that need stable general-purpose dry air, continuous-duty performance, and efficient cooling in plants where cooling water is available. With a stable pressure dew point of 2–10°C, it is well suited for central compressed air systems serving large indoor industrial facilities.
For the India page, this model is best positioned as a large-capacity refrigerated dryer for centralized industrial air systems, rather than a small workshop dryer or a low-dew-point adsorption solution. It is especially suitable for steel, petrochemical, textile, heavy engineering, and large plant utility air systems, because those sectors are prominent in India and typically operate large, continuous compressed air networks. In this context, pharmaceutical and food & beverage are better framed as utility air / packaging support applications rather than critical ultra-dry process air.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The 1340 SCFM refrigerated air dryer (water cooled) is a high-performance moisture removal system designed for industrial applications that demand clean and dry compressed air. Engineered for reliability and efficiency, this water-cooled model uses chilled water circulation to condense and remove moisture from compressed air streams with a rated capacity of 1340 SCFM.
Whether your facility operates in high-temperature environments or uses centralized water cooling systems, the 1340 SCFM refrigerated air dryer (water cooled) is your best solution for delivering constant dew point control and protection for downstream equipment.

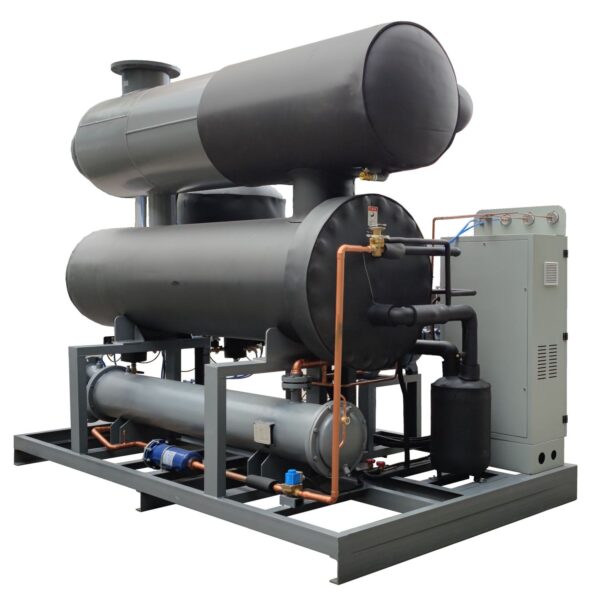

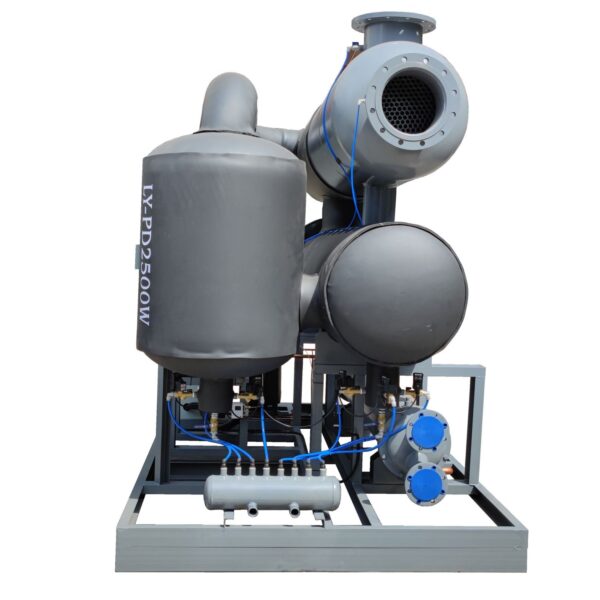

The 3885 CFM water-cooled refrigerated air dryer is an industrial moisture-removal system designed for facilities that require stable and efficient drying performance. Suitable for large compressed air networks, it provides reliable dew point control and long-term protection for downstream equipment in demanding environments.
Engineered for continuous operation, this high-capacity unit combines advanced refrigeration components with an energy-efficient water-cooling design. Its consistent performance makes it ideal for industries such as petrochemical processing, metal fabrication, manufacturing, and pharmaceutical production—any application where clean, dry compressed air is essential.

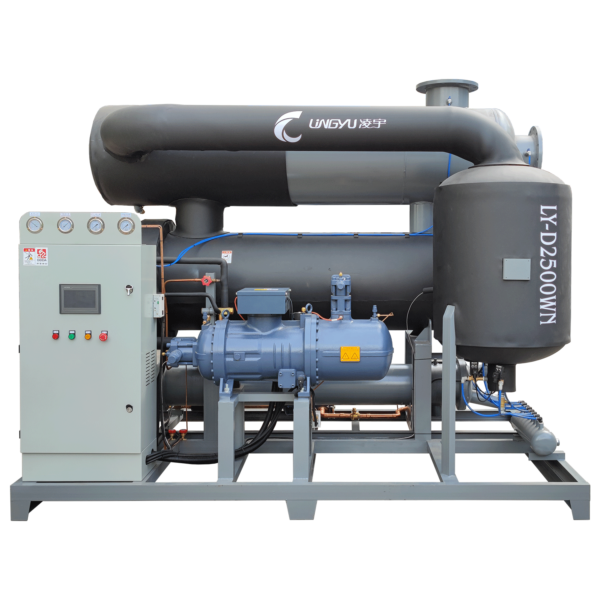

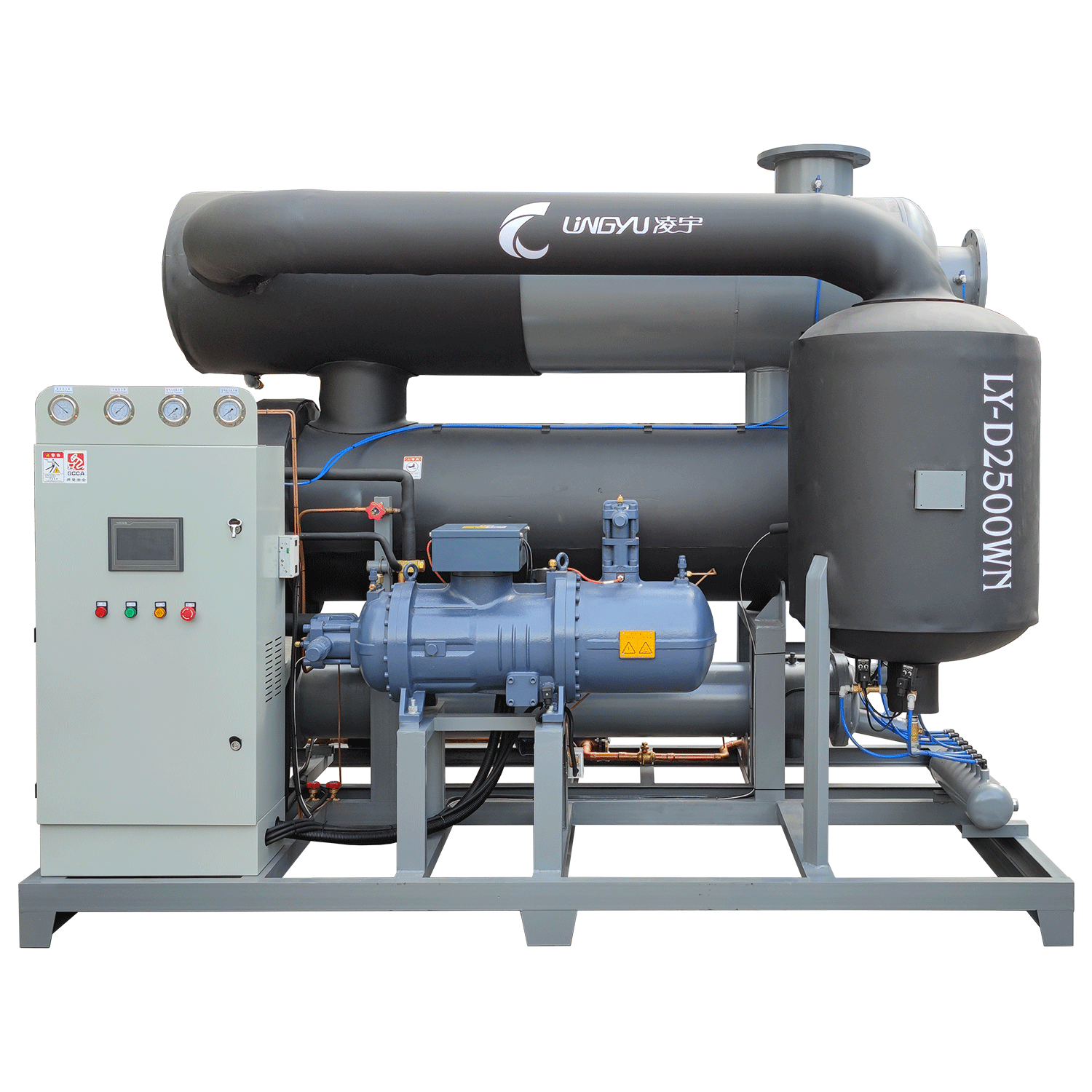

The 4238 CFM refrigerated air dryer (water cooled) is a high-capacity, industrial-grade dryer designed to eliminate moisture from large compressed air systems. Built with a powerful water-cooled refrigeration circuit, this dryer ensures reliable and continuous moisture removal with a stable pressure dew point. For industries that demand high airflow rates and dependable air quality, the 4238 CFM refrigerated air dryer (water cooled) is the ideal solution.
Whether operating in petrochemical, textile, food processing, or manufacturing sectors, the 4238 CFM refrigerated air dryer provides exceptional performance, energy efficiency, and long-term durability.
