Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
The independently developed EBZ200-2 multi-core driver can save more than 10% of the comprehensive energy consumption compared with the fixed cycle mode;
The communication can meet the user’s requirements such as RS-485 (standard), IoT connection, etc.
The optional dew point energy-saving control can extend the adsorption time and reduce the comprehensive energy consumption by more than 30% under load fluctuation conditions;
Customized high-performance adsorbent, 20% filling margin;
304 stainless steel control gas pipeline, specially designed diverter, high adsorbent utilization rate, small gas pressure loss;
7-inch Siemens touch screen programmable controller, dynamic monitoring of operation process；

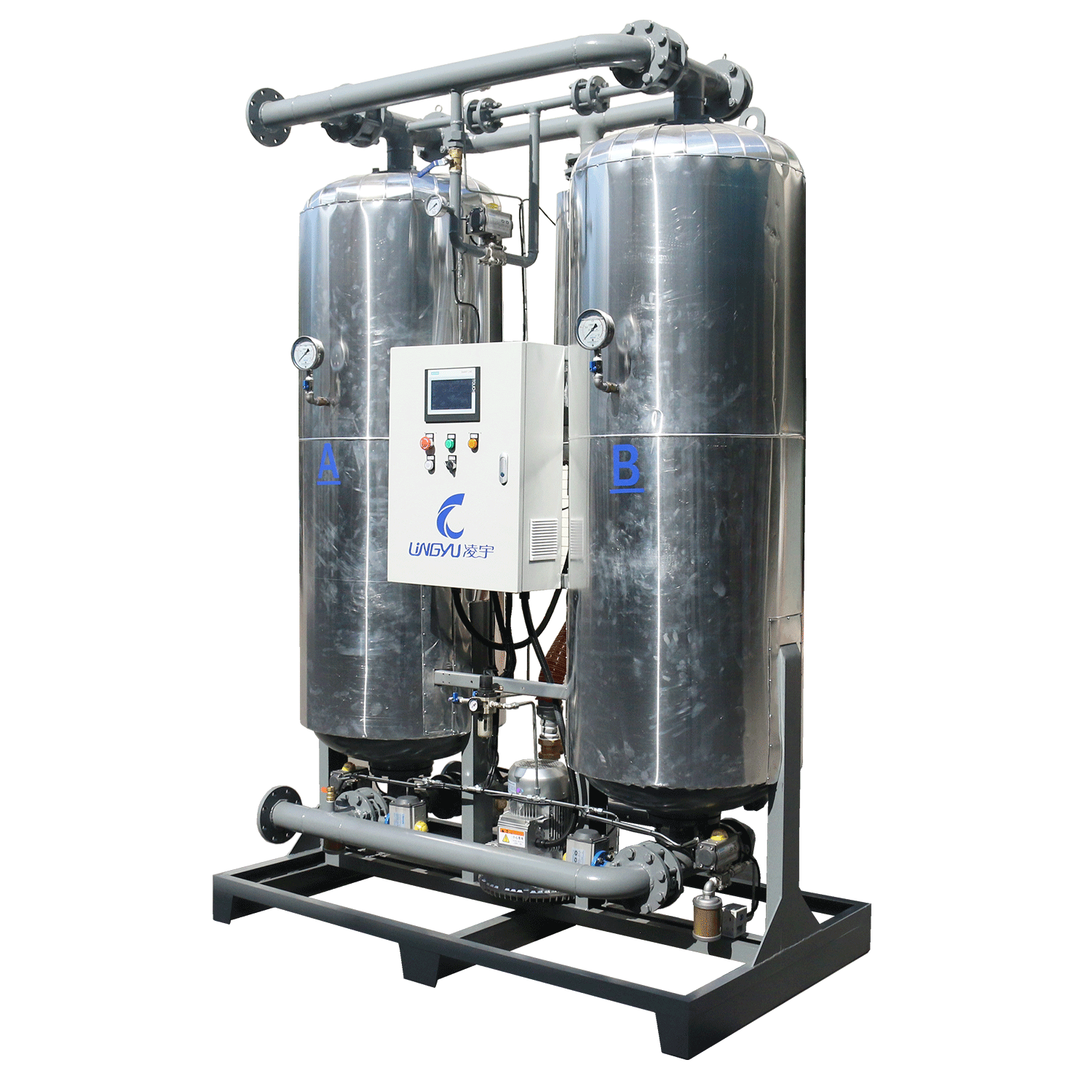

The stainless steel blast heating regeneration adsorption dryer is designed for compressed air systems that require ultra-dry, oil-free, and energy-efficient air treatment. It is an upgraded version of the micro-gas-consumption blast heat regeneration adsorption dryer, featuring an additional intermediate cooler to improve regeneration efficiency and overall drying performance.
During operation, ambient air is drawn in by a blower and heated by a built-in heater. The heated air then passes through the saturated adsorption tower, desorbing the moisture accumulated in the adsorbent. After the heating stage, the hot regeneration air circulates through the intermediate cooler and the regeneration tower, cooling the tower in a continuous closed-loop cycle.
Because the full regeneration process is completed without consuming compressed air, the system achieves zero compressed air consumption during regeneration, helping reduce energy use and operating costs. By combining TSA (Temperature Swing Adsorption) technology with blower thermal purge regeneration, the dryer delivers reliable moisture removal, stable dew point performance, and efficient long-term operation.
To ensure stable performance and long service life, the stainless steel blast heating regeneration adsorption dryer should be used under the following recommended conditions:
For the best drying result, the system should be supplied with clean and stable compressed air. Proper pre-filtration and oil removal are recommended to protect the adsorbent, maintain drying efficiency, and ensure consistent outlet air quality.
| Model | Capacity (m³/min) | Gas Connection Pipe | Power (kW) | Dimensions (mm) |
|---|---|---|---|---|
| HRB-E100 | 13.5 | DN50 | 7.5 | 1390×970×2297 |
| HRB-E120 | 17 | DN65 | 10.2 | 1750×1050×2271 |
| HRB-E150 | 21.5 | DN80 | 11.8 | 1750×1050×2471 |
| HRB-E180 | 25 | DN80 | 14.2 | 1800×1050×2597 |
| HRB-E200 | 28.5 | DN80 | 16.8 | 1900×1100×2454 |
| HRB-E250 | 32 | DN80 | 18.4 | 1920×1260×2600 |
| HRB-E300 | 37 | DN100 | 21.5 | 2175×1340×2750 |
| HRB-E350 | 41.5 | DN100 | 25.9 | 2200×1350×2752 |
| HRB-E400 | 45 | DN100 | 27.5 | 2400×1500×2852 |
| HRB-E450 | 50 | DN100 | 30 | 2540×1670×2938 |
| HRB-E500 | 55 | DN125 | 31.5 | 2650×1700×3138 |
| HRB-E550 | 60 | DN125 | 33.5 | 2700×1840×3150 |
| HRB-E600 | 65 | DN125 | 36.3 | 2750×1840×2888 |
| HRB-E700 | 75 | DN125 | 41.1 | 2750×1840×2888 |
| HRB-E800 | 85 | DN125 | 47.8 | 3100×1900×3050 |
| HRB-E900 | 95 | DN150 | 52.6 | 3250×2100×2950 |
| HRB-E1000 | 110 | DN150 | 59 | 3250×2100×2950 |
| HRB-E1200 | 120 | DN150 | 63.8 | 3500×2200×3341 |
| HRB-E1400 | 140 | Dn200 | 74.1 | 3700×2400×3420 |
| HRB-E1600 | 160 | DN200 | 89 | 3900×2420×3500 |
| HRB-E1800 | 180 | DN200 | 98.5 | 4100×2200×3050 |
| HRB-E2100 | 210 | DN200 | 110.5 | 4200×2835×3150 |
| HRB-E2600 | 260 | DN250 | 136.4 | 5200×2500×3300 |
Note：For air volumes above 260 m³/min or special specifications (materials, temperature, or pressure), please contact our company or authorized dealers. Data is for reference only and may change without prior notice.
In India’s hot climate, seasonal monsoon humidity, and demanding industrial environments, compressed air systems often require not only reliable moisture removal, but also better hygiene, corrosion resistance, and lower long-term operating cost. The stainless steel blast heating regeneration adsorption dryer is designed for clean-process and large-scale compressed air systems that need stable low-dew-point air, oil-free air quality support, and zero compressed air consumption during regeneration. With stainless steel construction, blower-heated regeneration, and an intermediate cooler for improved regeneration efficiency, it is well suited for Indian users operating in moisture-sensitive and cleanliness-focused production environments.
For the India page, this model is best positioned as a stainless steel, energy-efficient low-dew-point drying solution for industries where hygiene, corrosion resistance, and reliable long-term operation matter more than a basic standard dryer can offer. It is especially suitable for food processing, pharmaceutical production, electronics manufacturing, chemical processing, and large clean-process utility air systems in India.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The Blower & Zero Purge Adsorption Dryer is an advanced solution for industrial compressed air systems, designed to provide continuous, energy-efficient moisture removal.
This dryer combines blower-assisted regeneration with a zero purge cycle, ensuring the regeneration process consumes no compressed air. Ambient air is drawn in by the blower, heated to desorb moisture from the adsorbent, and then cooled through an intermediate cooler in a continuous closed-loop cycle. The result is a stable low dew point with minimal energy usage, protecting downstream equipment and ensuring consistent air quality in industrial operations.
The communication can meet the user's requirements such as RS-485 (standard), IoT connection, etc.
The independently developed EBZ200-2 multi-core driver can save more than 10% of the comprehensive energy consumption compared with the fixed cycle mode;
The optional dew point energy-saving control can extend the adsorption time and reduce the comprehensive energy consumption by more than 30% under load fluctuation conditions;
Customized high-performance adsorbent, 20% filling margin;
304 stainless steel control gas pipeline, specially designed diverter, high adsorbent utilization rate, small gas pressure loss;
7-inch Siemens touch screen programmable controller, dynamic monitoring of operation process；
