Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).
The air is pure, no secondary pollution, integrated skid-mounted design, compact structure, stable dew point, remarkable water removal effect.
Stainless steel plate heat exchanger with high heat exchange efficiency and compact structure.
Independent stainless steel steam-water separator with high water separation efficiency, timely separates condensed water and other impurities from compressed air and discharges them out of the machine.
The whole machine is made of stainless steel or aluminum alloy, which will not rust and prevent secondary contamination of compressed air.
Single chip intelligent control, real-time display of evaporation temperature, including over-temperature alarm, electrical fault, high pressure alarm, low pressure alarm and other functions.

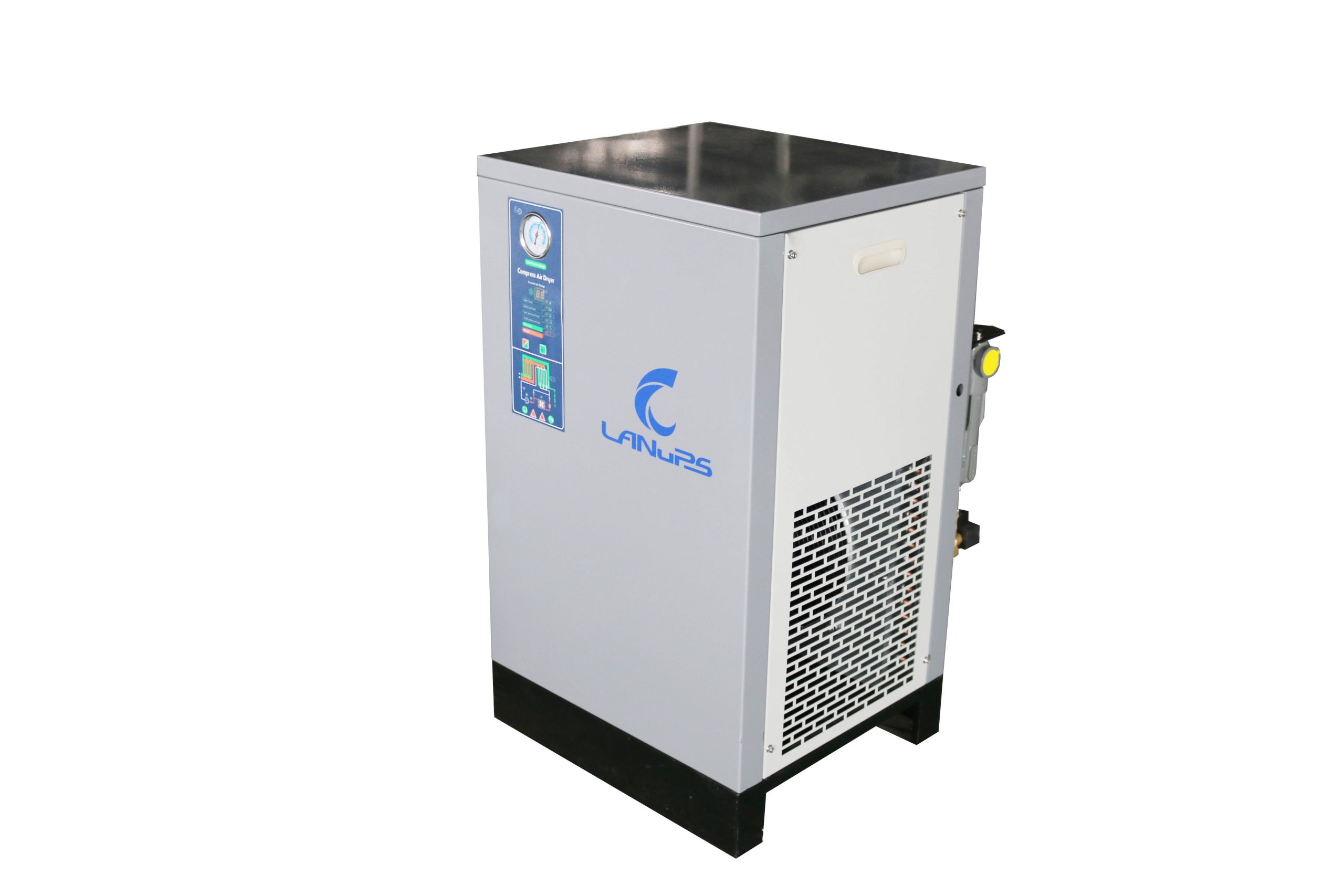

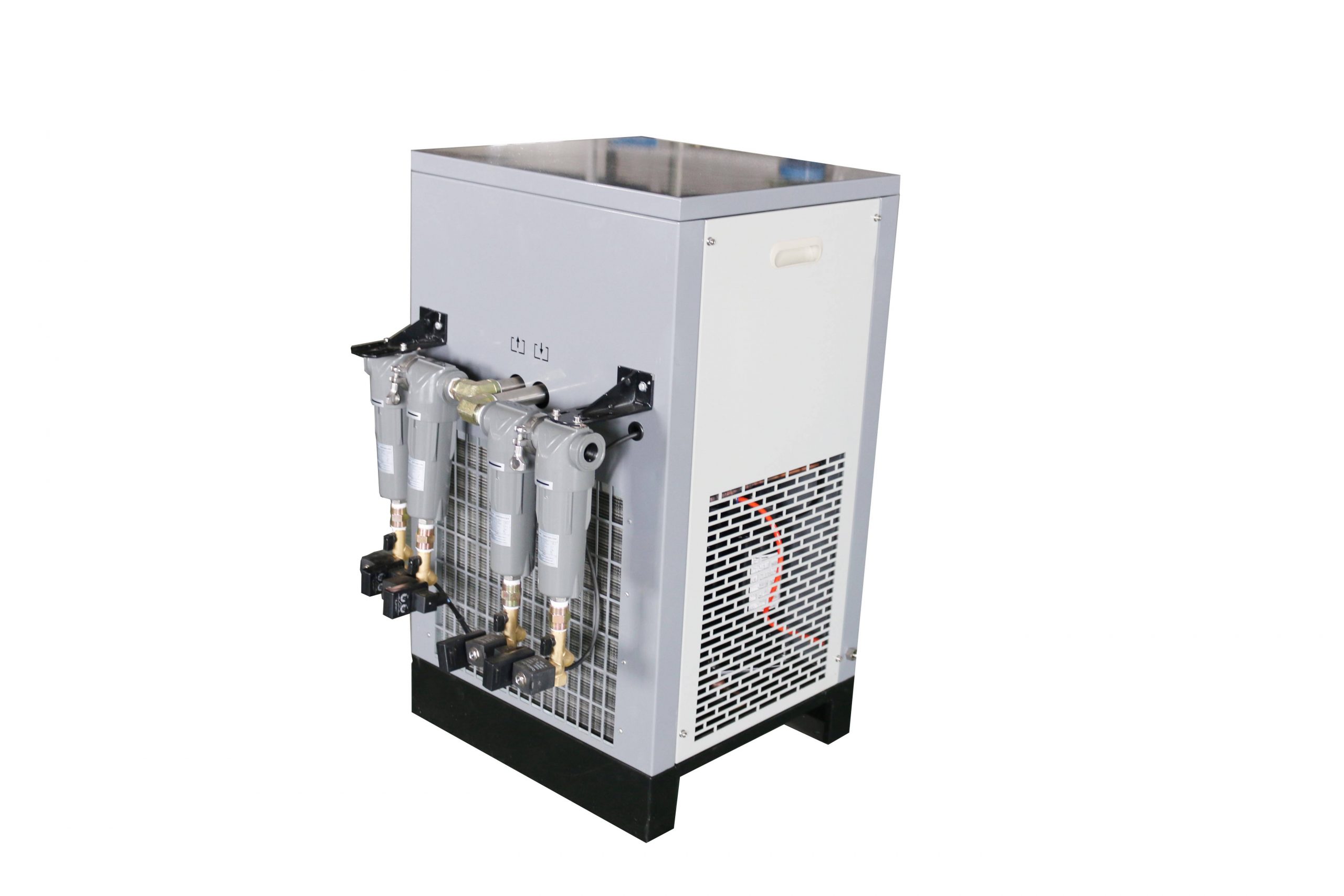

The high-pressure refrigerated air dryer is designed for compressed air systems that require stable moisture removal under elevated working pressure. It adopts a combined drying process of double-stage precooling, refrigeration, condensation, and five-stage gas-water separation to ensure reliable dew point performance and efficient condensate removal.
During operation, hot and moisture-laden compressed air first passes through the double-stage precooler, where part of the heat is removed before entering the refrigeration circuit. The air is then cooled further by the refrigerant system, causing water vapor to condense into liquid. After condensation, the compressed air passes through a five-stage gas-water separation system, which efficiently removes the condensed moisture and delivers dry compressed air to the downstream system.
With its air-cooled heat dissipation design, the dryer uses forced heat exchange between the ambient air and refrigerant to maintain stable operation. This structure helps ensure a consistent outlet air dew point of +2°C to +10°C, protecting pipelines, valves, pneumatic components, and end-use equipment from moisture-related problems.
To ensure stable drying performance and reliable long-term operation, the refrigerated air dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be installed in a clean and well-ventilated environment. Stable inlet conditions and proper system layout help maintain drying efficiency, reduce pressure loss, and improve equipment service life.
| Processing Capacity (m³/min) | Input Power (kW) | Connection Size | Weight (kg) | Dimensions (mm) L × W × H |
|---|---|---|---|---|
| 3.8 | 0.44–1.25 | G1½” | 105 | 1000 × 600 × 1050 |
| 7.0 | 0.48–1.42 | G1½” | 130 | 1100 × 600 × 1100 |
| 10.5 | 0.60–1.90 | G2″ | 155 | 1250 × 700 × 1155 |
| 13.5 | 0.80–3.60 | G2½” | 350 | 1400 × 850 × 1350 |
| 17.0 | 1.02–3.61 | DN80 | 450 | 1570 × 800 × 1200 |
| 21.5 | 1.02–4.03 | DN80 | 480 | 1500 × 950 × 1400 |
| 25.0 | 1.4–5.5 | DN80 | 530 | 1835 × 940 × 1480 |
| 28.5 | 1.40–6.20 | DN80 | 540 | 1835 × 940 × 1480 |
| 32.0 | 2.02–7.58 | DN80 | 560 | 1835 × 940 × 1480 |
| 37.0 | 1.83–6.75 | DN100 | 680 | 1900 × 980 × 1580 |
Note: For special specifications or requirements related to pressure, materials, temperature, or larger air volume, customized solutions are available. The above data is for reference only and may change without prior notice.
In India’s hot climate, seasonal monsoon humidity, and demanding industrial environments, high-pressure compressed air systems often require reliable moisture removal to prevent condensate, corrosion, and unstable equipment performance. The High-Pressure Refrigerated Air Dryer is designed for industrial users that need stable compressed air drying under 10–16 bar working pressure, together with efficient condensate removal and continuous-duty operation. With a stable outlet pressure dew point of +2°C to +10°C, it is well suited for Indian factories using high-pressure compressed air in metalworking, laser cutting, automation, and plant utility systems.
For the India page, this model is best positioned as a high-pressure refrigerated dryer for general industrial moisture removal, not as an ultra-low-dew-point solution. It is especially suitable for laser cutting, metal fabrication, automotive and machinery production, electronics support systems, and centralized high-pressure compressed air networks. That positioning fits both India’s hot, humid operating environment and its strong manufacturing base in automotive, electronics, pharmaceuticals, and textiles.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The 25/35/50 CFM Air-Cooled Refrigerated Air Dryer from Lingyu is a compact and energy-efficient solution for small to medium compressed air systems. It efficiently removes moisture and maintains a stable dew point, providing clean, dry air for tools, machinery, and production processes.
With its reliable air-cooled design, low power consumption, and easy operation, this dryer series helps improve air system performance, reduce maintenance costs, and protect equipment from moisture-related damage.
The 200 CFM refrigerated air dryer (air cooled) is a compact and efficient solution for removing moisture from compressed air systems. Designed for mid-sized industrial applications, this dryer ensures clean, dry air to protect downstream equipment from corrosion, contamination, and failure.
With air-cooled technology and stable dew point performance, the 200 CFM refrigerated air dryer (air cooled) offers a reliable and energy-saving approach to compressed air drying.
The 100 CFM refrigerated air dryer (air cooled) is a high-performance compressed air treatment solution designed to remove moisture from compressed air systems efficiently. Ideal for small to medium-sized industrial applications, this air dryer ensures clean, dry air to protect downstream equipment and improve productivity.
With advanced air-cooling technology, compact design, and energy-efficient components, the 100 CFM refrigerated air dryer (air cooled) is the perfect choice for users seeking reliability, efficiency, and long service life.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient flow cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1bar;
Low dew point: The new optimized integrated three-in-one design and unique water separation design make the dew point more guaranteed;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensuring that the machine runs in the best state, and standard RS-485 communication interface.
