Supports customization with a processing capacity of up to 70630 CFM (cubic feet per minute).
Efficient nitrogen generator providing 99.5% nitrogen purity. Designed for reliable performance in industrial, laboratory, and food packaging applications.
The 99.5% PSA Nitrogen Generator is designed to provide a stable, continuous, and cost-effective nitrogen supply for a wide range of industrial applications. By using Pressure Swing Adsorption (PSA) technology, the system separates nitrogen from compressed air through high-performance carbon molecular sieve (CMS), eliminating the need for traditional nitrogen cylinders or liquid nitrogen delivery.

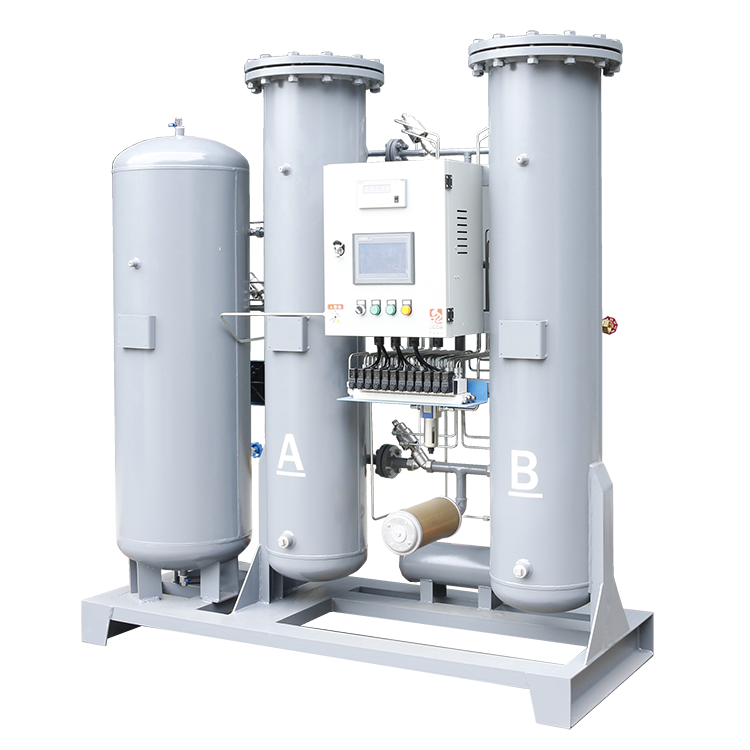

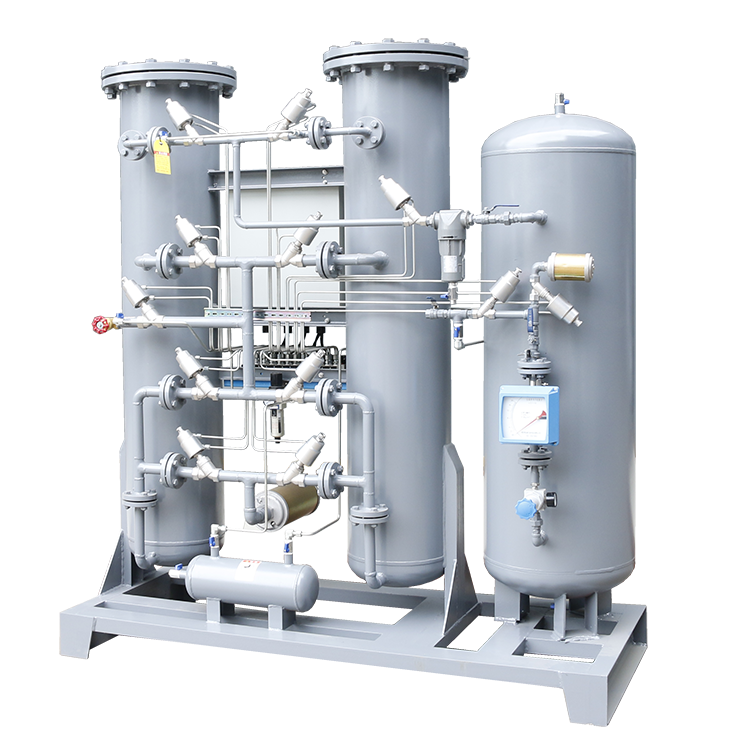

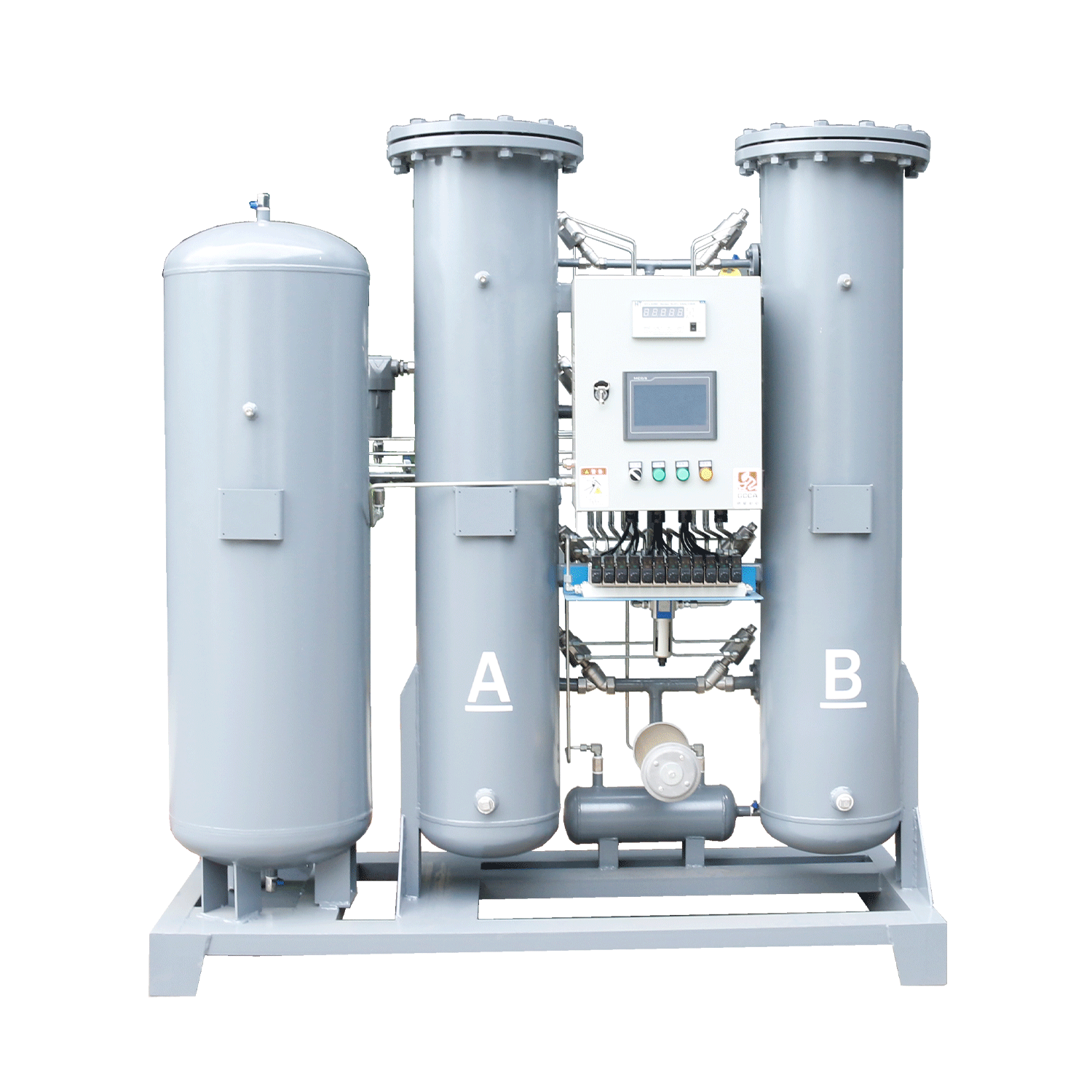

The generator operates with a dual-tower adsorption system. During operation, compressed air enters one adsorption tower, where oxygen, moisture, and trace gases are selectively adsorbed by the CMS, while nitrogen passes through and is delivered to the outlet. At the same time, the second tower undergoes regeneration. A small portion of the produced nitrogen is used to release the adsorbed oxygen from the saturated CMS, and the exhaust gas is safely discharged into the atmosphere.
A PLC control system automatically switches the two towers every 45–60 seconds, ensuring uninterrupted nitrogen production and stable nitrogen purity at 99.5%. This process provides reliable performance, low energy consumption, fast start-up, and long service life, making it an ideal on-site nitrogen solution for industrial users.
To ensure stable nitrogen purity and efficient long-term operation, the nitrogen generator should be used under the following recommended conditions:
For the best performance, the generator should be supplied with clean and stable compressed air. Proper pre-treatment, including air filtration and drying, is recommended to protect the carbon molecular sieve, improve nitrogen generation efficiency, and extend equipment service life.
| Model | Nitrogen Production | Inlet Pipe Size | Outlet Pipe Size | H × L × W | Effective Air Consumption |
|---|---|---|---|---|---|
| LYZD-C12 | 12 | DN15 | DN15 | 1500×850×500 | 0.6 |
| LYZD-C20 | 20 | DN20 | DN15 | 1800×900×600 | 1 |
| LYZD-C35 | 35 | DN20 | DN15 | 1900×1000×600 | 1.75 |
| LYZD-C50 | 50 | DN25 | DN25 | 2400×1150×700 | 2.5 |
| LYZD-C60 | 60 | DN32 | DN25 | 2400×1150×700 | 3 |
| LYZD-C70 | 70 | DN32 | DN25 | 2600×1150×800 | 3.5 |
| LYZD-C90 | 90 | DN40 | DN40 | 2600×1200×800 | 4.5 |
| LYZD-C100 | 100 | DN40 | DN40 | 2600×1400×900 | 5 |
| LYZD-C120 | 120 | DN40 | DN40 | 2600×1500×900 | 6 |
| LYZD-C130 | 130 | DN40 | DN40 | 2750×1600×900 | 6.5 |
| LYZD-C150 | 150 | DN50 | DN40 | 2750×1750×900 | 7.5 |
| LYZD-C220 | 220 | DN50 | DN40 | 2750×1900×1000 | 11 |
| LYZD-C250 | 250 | DN65 | DN50 | 2650×2160×1280 | 12.5 |
| LYZD-C290 | 290 | DN65 | DN50 | 2890×2200×1200 | 14.5 |
| LYZD-C330 | 330 | DN65 | DN50 | 2890×2200×1200 | 16.5 |
| LYZD-C370 | 370 | DN65 | DN50 | 2900×2500×1350 | 18.5 |
| LYZD-C400 | 400 | DN80 | DN65 | 2900×2500×1350 | 20 |
| LYZD-C440 | 440 | DN80 | DN65 | 2900×2500×1350 | 22 |
Note：The data listed in this table are based on the adsorption pressure of 0.8MPa (gauge pressure) as the raw air, 20°C ambient temperature, and 80% relative humidity as the design basis. The data provided in this sample is for reference only.
In India’s hot climate, seasonal monsoon humidity, and fast-growing manufacturing environment, reliable compressed air pretreatment is essential for stable on-site nitrogen generation. The 99.5% PSA Nitrogen Generator is designed for users who need a continuous, economical, and dependable nitrogen supply without relying on cylinders or liquid nitrogen. With 99.5% nitrogen purity and a nitrogen dew point of ≤ -40°C, it is well suited for Indian industrial users that require general-purpose nitrogen for packaging, inerting, oxidation control, and production support.
For the India page, this model is best positioned as an economical general-purpose nitrogen solution, rather than an ultra-high-purity nitrogen system. It is especially suitable for food packaging, plastics processing, chemical blanketing, metal fabrication, powder metallurgy, and general industrial utility nitrogen use. For India’s summer and monsoon conditions, the page should also emphasize the need for clean, dry, stable compressed air pretreatment, since humidity and inlet air quality directly affect nitrogen purity and CMS life.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
Nitrogen generator with 99.99% purity—reliable, efficient, and built for demanding industrial applications.
Generate 99% pure nitrogen with our advanced nitrogen generator. Designed for stable performance, energy efficiency, and easy maintenance.
Automatic stop and start switching;
online real-time monitoring of nitrogen purity and flow rate;
long-term alarm and automatic shutdown of unqualified nitrogen;
automatic carbon molecular sieve compression device；
digital touch screen display of operating status;
