Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).

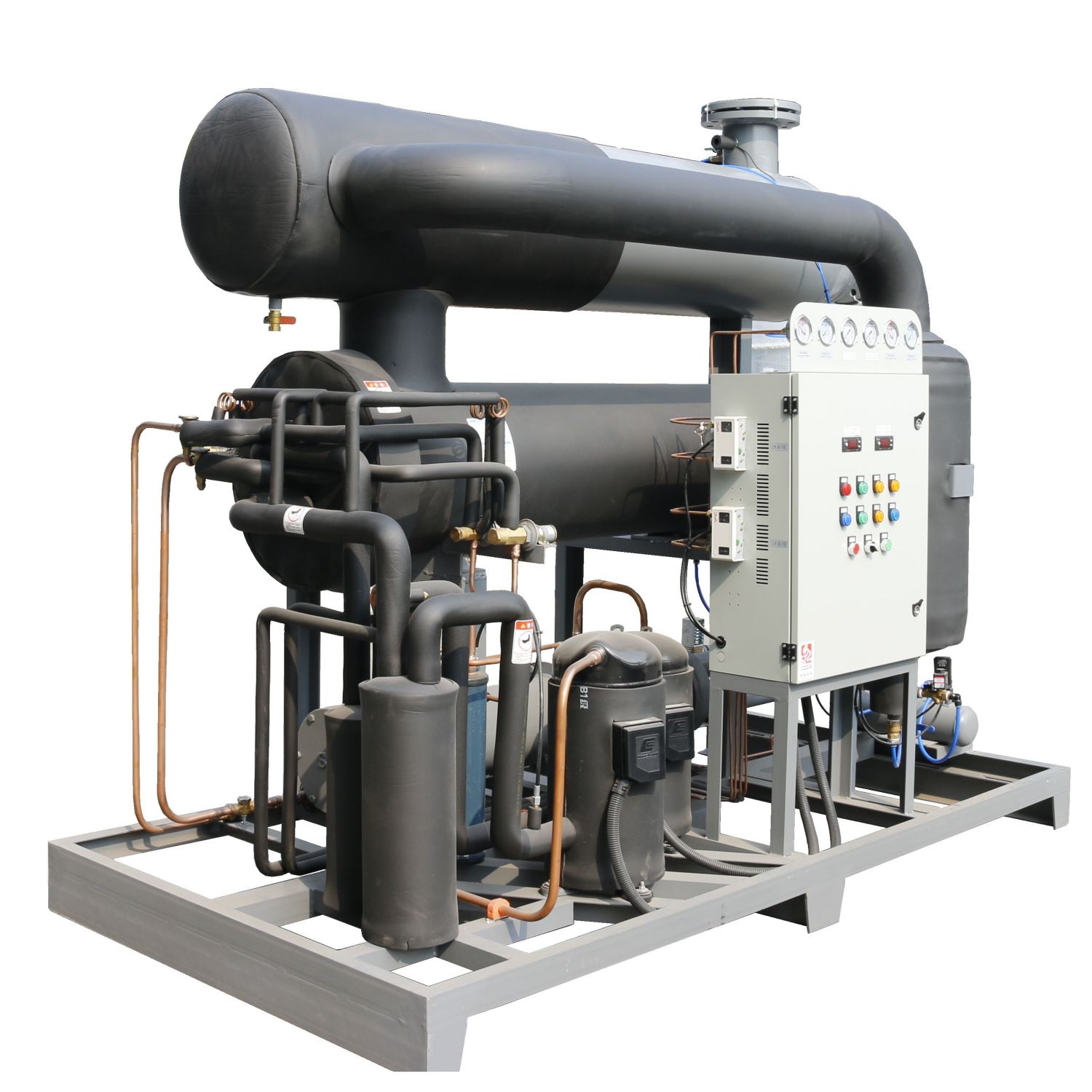

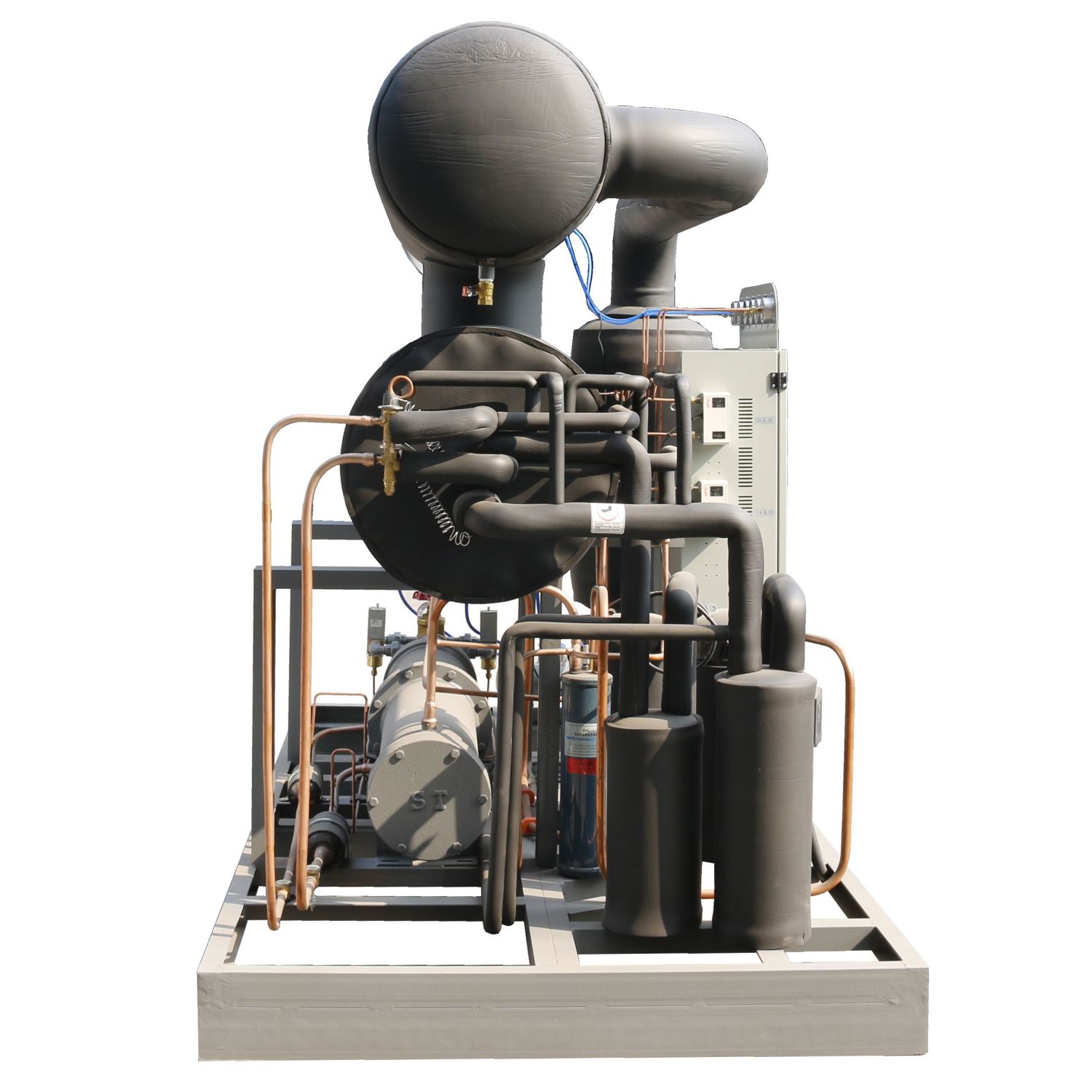

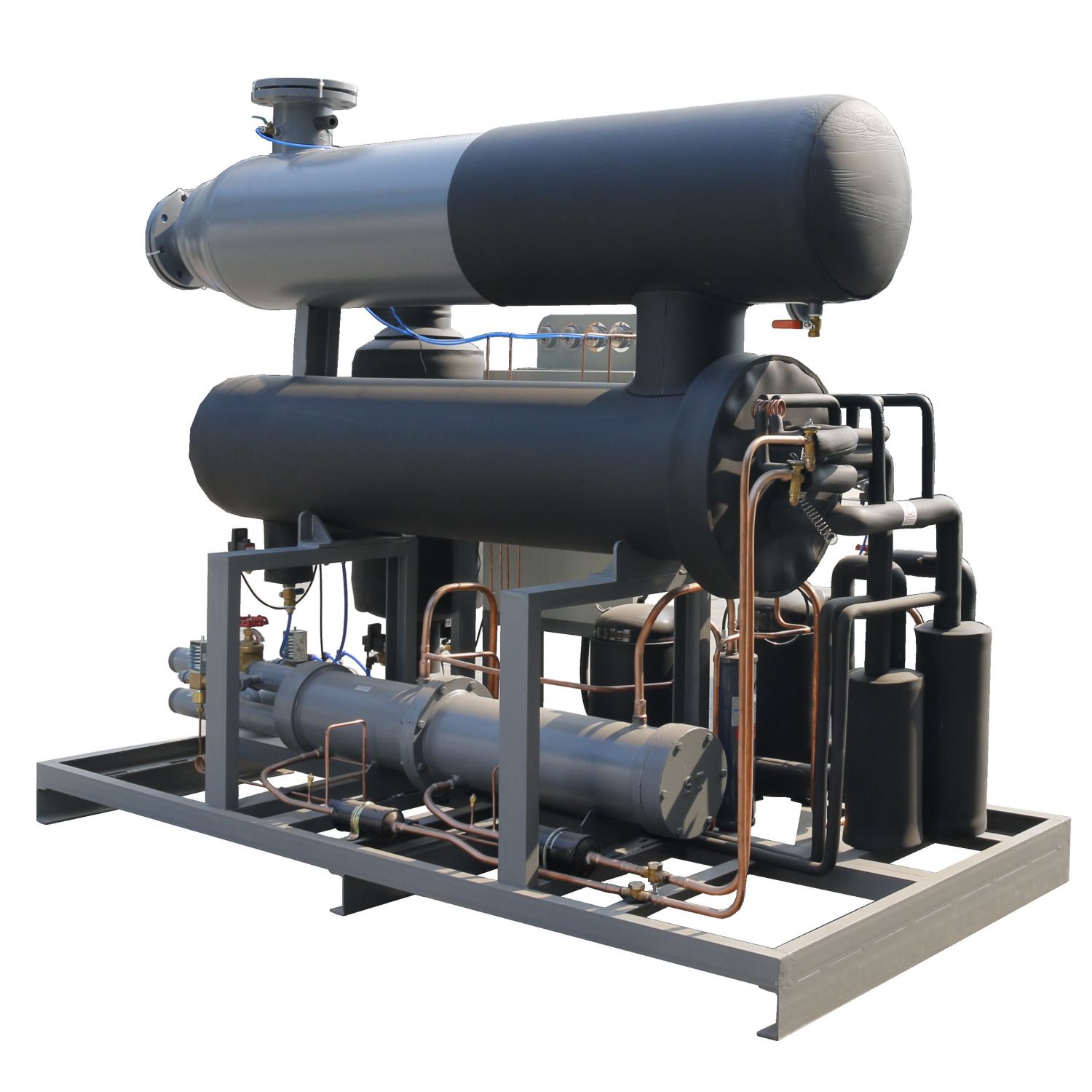

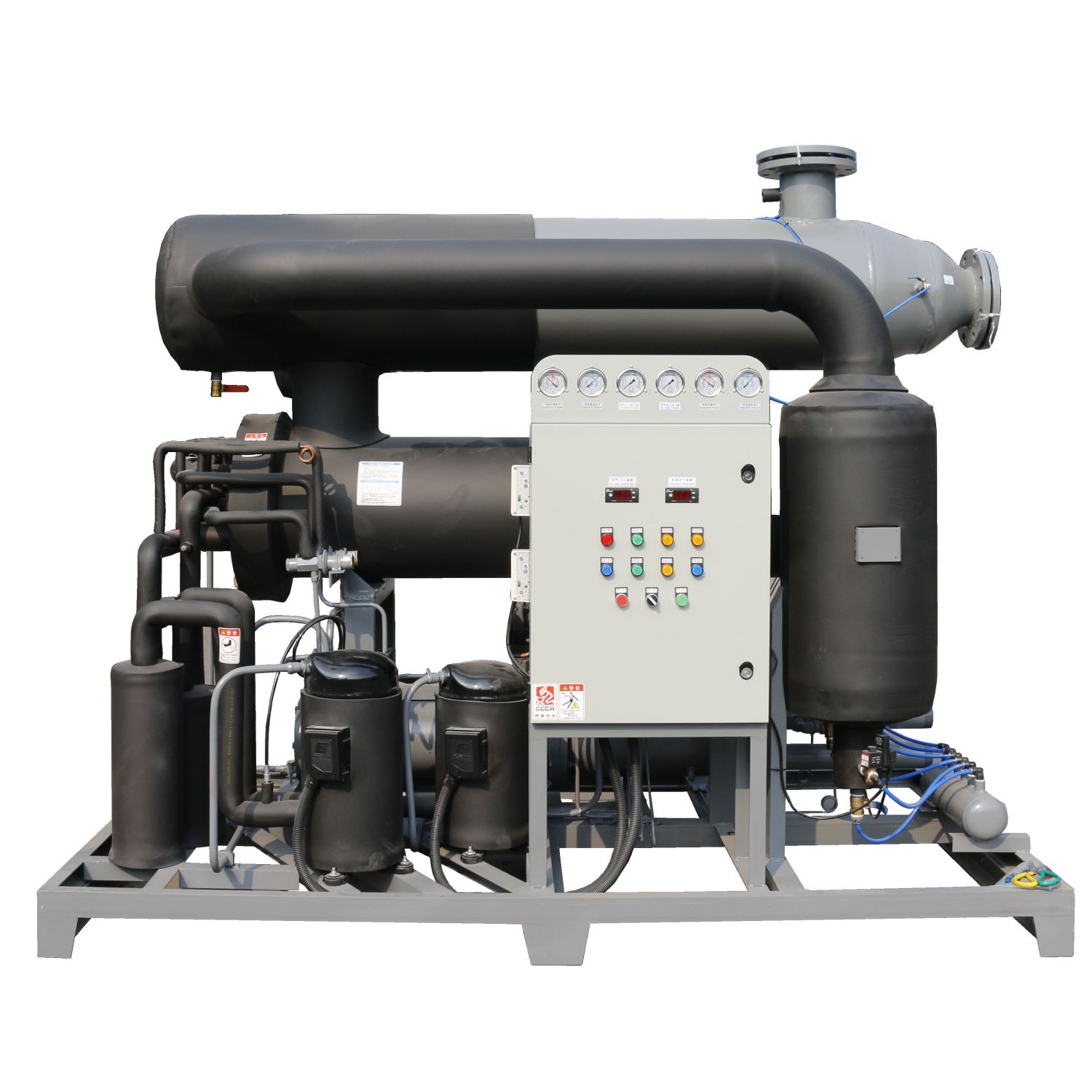

The 3885 CFM water-cooled refrigerated air dryer is an industrial moisture-removal system designed for facilities that require stable and efficient drying performance. Suitable for large compressed air networks, it provides reliable dew point control and long-term protection for downstream equipment in demanding environments.
Engineered for continuous operation, this high-capacity unit combines advanced refrigeration components with an energy-efficient water-cooling design. Its consistent performance makes it ideal for industries such as petrochemical processing, metal fabrication, manufacturing, and pharmaceutical production—any application where clean, dry compressed air is essential.
The 3885 CFM Water-Cooled Refrigerated Air Dryer is designed for large industrial compressed air systems that require stable moisture removal and reliable continuous operation. It uses a refrigeration-based drying process to cool compressed air, condense water vapor, and discharge the condensate from the system before the air reaches downstream equipment.
During operation, hot and moisture-laden compressed air enters the dryer and passes through the internal heat exchange and refrigeration system. As the air temperature drops, water vapor condenses into liquid, which is then removed through the automatic drain system. The dried air is discharged with a stable pressure dew point of 2–10°C, helping protect pipelines, air tools, valves, and production equipment from moisture damage.
With its water-cooled heat dissipation design, this model offers efficient thermal performance and dependable operation in high-temperature environments or heavy-duty industrial conditions. The combination of a durable refrigeration system, smart control interface, and industrial-grade construction makes it well suited for 24/7 compressed air treatment.
To ensure stable performance and reliable drying efficiency, the 3885 CFM Water-Cooled Refrigerated Air Dryer should be used under the following recommended conditions:
For the best operating result, the dryer should be installed in a clean indoor environment with stable power supply and proper cooling water conditions. Using pre-filtration and after-filtration is recommended to improve compressed air quality and help protect both the dryer and downstream equipment.
| Parameter | Specification |
|---|---|
| Model | 3885 CFM Water-Cooled Refrigerated Dryer |
| Rated Capacity | 3885 CFM |
| Cooling Method | Water Cooled |
| Max Operating Pressure | 10 bar |
| Pressure Dew Point | 2–10°C |
| Refrigerant | R407C / R134a |
| Power Requirements | 380V / 3Ph / 50Hz |
| Water Connection | 1½” BSP (custom options available) |
| Air Inlet/Outlet | 4″ Flanged |
| Dimensions (L × W × H) | 2600 × 1500 × 2200 mm |
| Net Weight | 950 kg |
In India’s hot climate, seasonal monsoon humidity, and heavy-duty industrial environments, large compressed air systems often require dependable moisture removal to protect pipelines, valves, pneumatic equipment, and production processes. The 3885 CFM Water-Cooled Refrigerated Air Dryer is designed for large-scale compressed air systems that need stable general-purpose dry air, continuous-duty performance, and efficient cooling in plants where cooling water is available. With a stable pressure dew point of 2–10°C, it is well suited for central compressed air systems serving large indoor industrial facilities.
For the India page, this model is best positioned as a large-capacity refrigerated dryer for centralized industrial air systems, rather than a small workshop or precision low-dew-point solution. It is especially suitable for petrochemical plants, steel and metal processing, textile and plastics production, pharmaceutical utility air systems, and other large manufacturing facilities where continuous operation, stable cooling performance, and reliable moisture removal are essential. In India’s hot and humid conditions, proper indoor installation, stable cooling-water supply, and recommended pre-filter + after-filter configuration will help maintain performance and protect downstream equipment.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
The 1340 SCFM refrigerated air dryer (water cooled) is a high-performance moisture removal system designed for industrial applications that demand clean and dry compressed air. Engineered for reliability and efficiency, this water-cooled model uses chilled water circulation to condense and remove moisture from compressed air streams with a rated capacity of 1340 SCFM.
Whether your facility operates in high-temperature environments or uses centralized water cooling systems, the 1340 SCFM refrigerated air dryer (water cooled) is your best solution for delivering constant dew point control and protection for downstream equipment.
The 8830 CFM refrigerated air dryer (water cooled) is a top-tier industrial solution engineered to remove moisture from large-scale compressed air systems. Built for ultra-high capacity applications, this dryer ensures consistently dry air with a stable dew point and superior thermal control using an advanced water-cooled condenser system.
Designed for 24/7 operation in the most demanding environments, the 8830 CFM refrigerated air dryer (water cooled) guarantees optimal air quality, minimal pressure loss, and extended equipment lifespan across heavy-duty industries.
Low pressure loss: The precooler is a newly designed annular pipe structure, with three times more pipes than the traditional precooler. The sufficient flow cross-sectional area of compressed air further reduces the pressure difference, and the pressure loss of the whole machine is less than 0.1bar;
Low dew point: The new optimized integrated three-in-one design and unique water separation design make the dew point more guaranteed;
Intelligent control: Standard PLC and touch screen, intelligently control the compressor cooling capacity output by sensing the evaporation load, ensuring that the machine runs in the best state, and standard RS-485 communication interface.
