Supports customization with a processing capacity of up to 15900 CFM (cubic feet per minute).

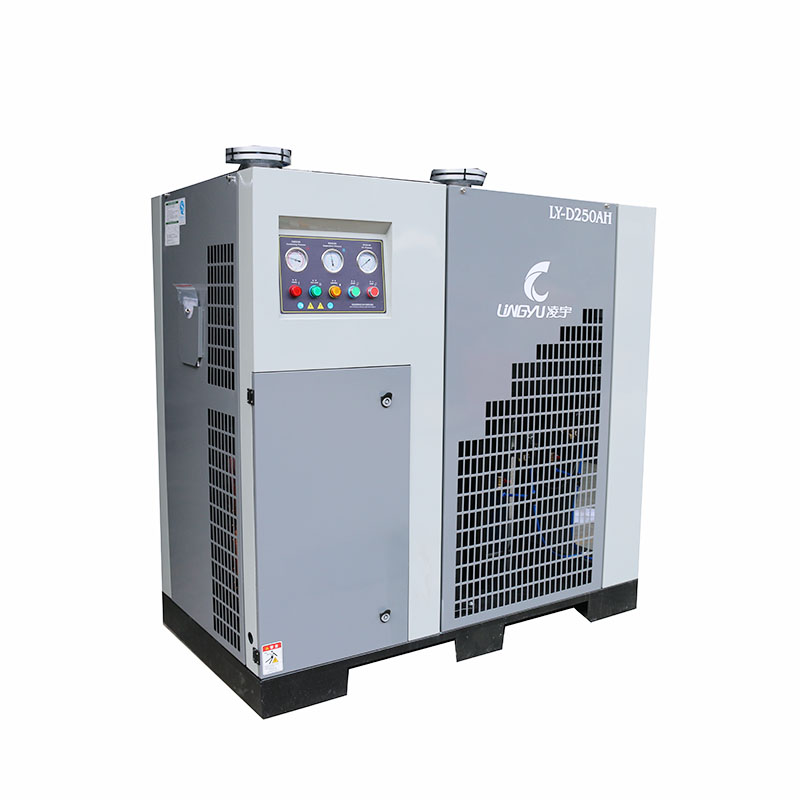

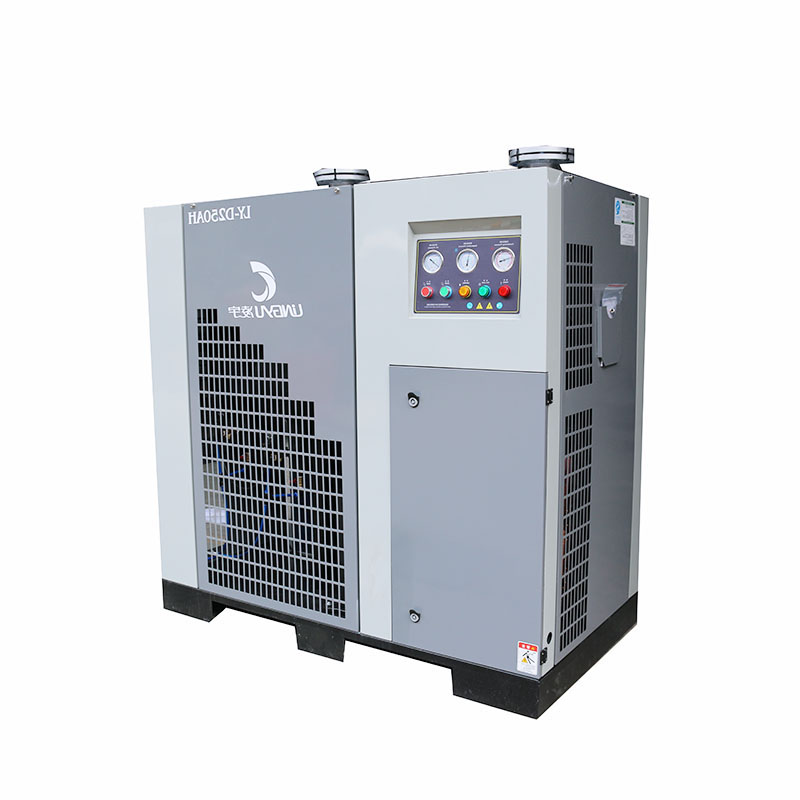

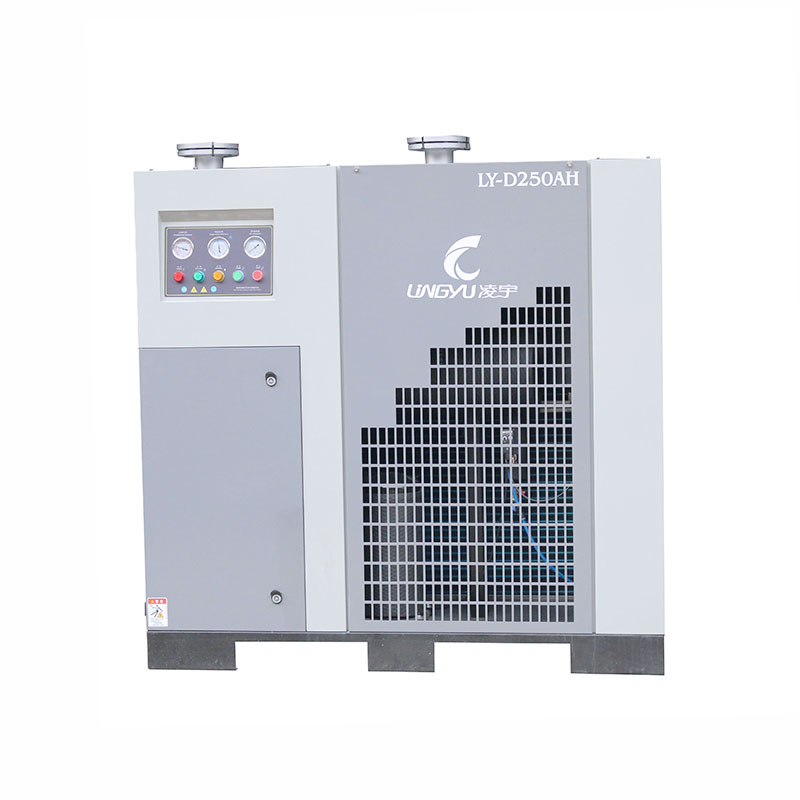

The 1130 SCFM refrigerated air dryer (air cooled) is a high-capacity, energy-efficient solution designed to eliminate moisture from compressed air systems in demanding industrial environments. With a robust air-cooled refrigeration system and a processing capacity of 1130 SCFM, this dryer delivers consistent performance and reliable dew point control to protect downstream equipment and ensure production continuity.
Whether you’re operating in a manufacturing plant, automotive facility, or heavy-duty processing site, the 1130 SCFM refrigerated air dryer (air cooled) guarantees optimal air quality while reducing maintenance costs and energy waste.
✅ High Processing Capacity: Handles compressed air volumes up to 1130 SCFM, ideal for large-scale systems.

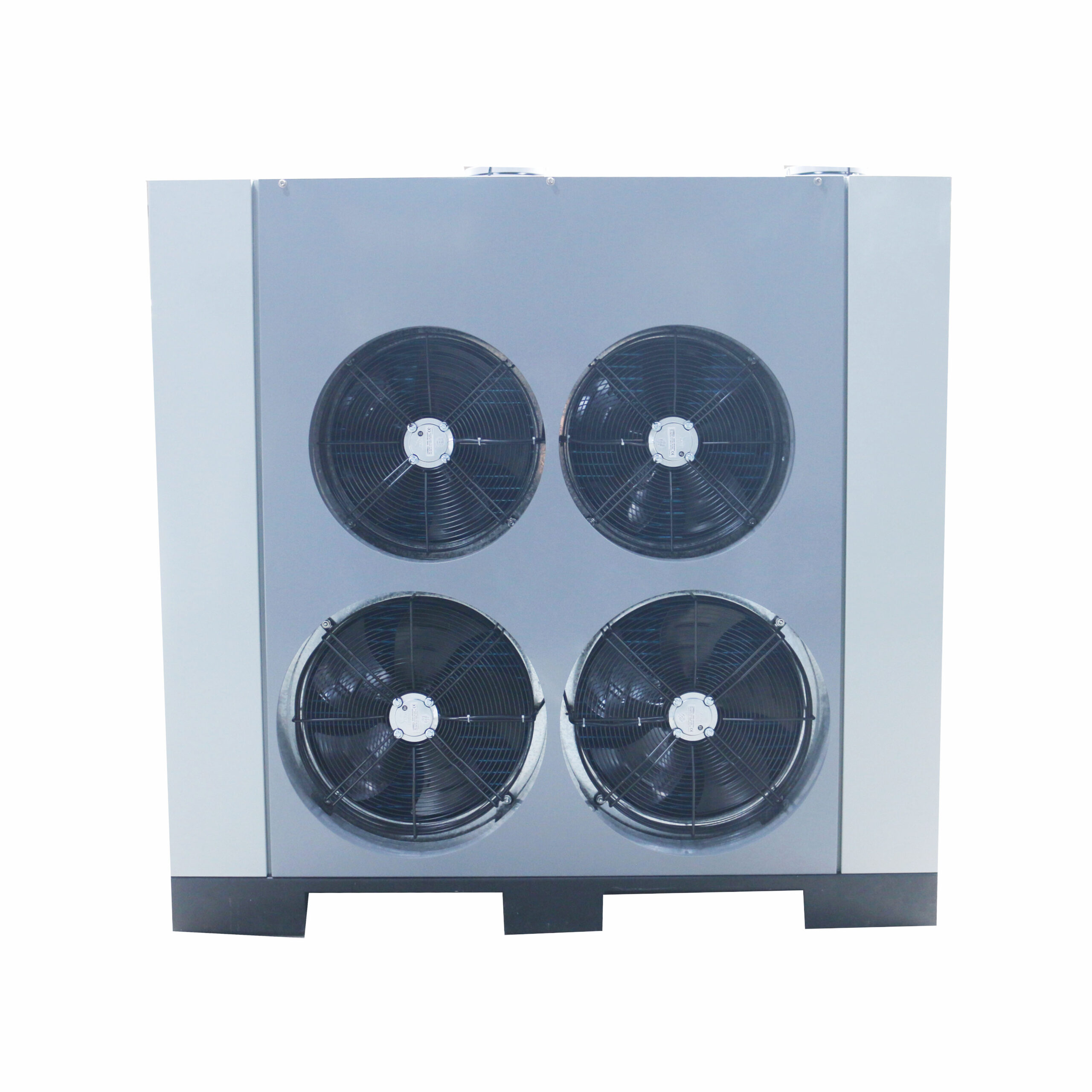

✅ Air Cooled System: Eliminates the need for water cooling infrastructure, reducing installation and operational costs.
✅ Stable Dew Point: Maintains a reliable pressure dew point between 2–10°C (35.6–50°F), preventing condensation and corrosion.
✅ Efficient Refrigeration Circuit: Equipped with a durable scroll or rotary compressor for low energy consumption.
✅ User-Friendly Interface: Real-time monitoring, alarms for high temperature, and system status indicators.
✅ Automatic Condensate Drain: Ensures consistent moisture discharge without manual intervention.
The 1130 SCFM refrigerated air dryer (air cooled) is engineered for performance, reliability, and long-term value.
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5 – 45°C (41 – 113°F)
Installation Location: Indoor, well-ventilated, dust-free environment
Power Supply: 380V / 3Ph / 50Hz (or customizable)
Refrigerant Type: R407C or R134a (environmentally friendly options)
Recommended Filters: Pre-filter and after-filter for optimal protection and air quality
| Model | 1130 SCFM Refrigerated Air Dryer (Air Cooled) |
|---|---|
| Capacity | 1130 SCFM (Standard Cubic Feet per Minute) |
| Cooling Method | Air Cooled |
| Power Supply | 380V / 3Ph / 50Hz |
| Max Operating Pressure | 10 bar |
| Pressure Dew Point | 2 – 10°C |
| Refrigerant | R407C / R134a |
| Connection Size | 3″ NPT or Flanged |
| Dimensions (L×W×H) | 1850 × 1100 × 1800 mm |
| Weight | 520 kg |
The 1130 SCFM refrigerated air dryer (air cooled) is built for durability and continuous operation in challenging conditions.
In India’s hot climate, seasonal monsoon humidity, and high-load industrial environments, large compressed air systems often require reliable moisture removal to reduce condensate, protect equipment, and maintain stable plant air quality. The 1130 SCFM refrigerated air dryer (air cooled) is designed for large-scale compressed air systems that need dependable general-purpose dry air, flexible installation, and continuous operation without relying on cooling water infrastructure. With a stable pressure dew point of 2–10°C, it is well suited for indoor industrial facilities where consistent condensate control and centralized air drying are essential.
This refrigerated air dryer is intended for general industrial moisture removal and centralized condensate control. For Indian installations, a clean, well-ventilated, dust-free indoor area is recommended, along with pre-filters and after-filters, to maintain stable performance during hot weather and monsoon conditions. For applications requiring ultra-dry air or dew points below 0°C, an adsorption dryer may be more suitable.
– As an air treatment and gas purification manufacturer, we can meet all your compressed air quality and industrial gas needs. This includes various filtering equipment and customized air quality services.
– Our company is always ready to provide explanations. Just share your air quality requirements and we can develop the best system for you.
Need help navigating our compressed air dryer offer? We are always ready to put together the solution that best meets your needs.
This 75 CFM (air-cooled) refrigerated air dryer is a reliable and energy-efficient solution, specifically designed to remove moisture from compressed air systems. It is ideal for small to medium industrial applications, providing clean, dry compressed air with a stable pressure dew point. With its compact design and air-cooled operation, this 75 CFM (air-cooled) refrigerated air dryer ensures long-term, stable performance while minimizing maintenance requirements.
Whether you operate a workshop, packaging line, or small production facility, the 75 CFM refrigerated air dryer (air-cooled) is the perfect choice to protect your pneumatic tools and equipment from moisture-related issues.
The 25/35/50 CFM Air-Cooled Refrigerated Air Dryer from Lingyu is a compact and energy-efficient solution for small to medium compressed air systems. It efficiently removes moisture and maintains a stable dew point, providing clean, dry air for tools, machinery, and production processes.
With its reliable air-cooled design, low power consumption, and easy operation, this dryer series helps improve air system performance, reduce maintenance costs, and protect equipment from moisture-related damage.
The 100 CFM refrigerated air dryer (air cooled) is a high-performance compressed air treatment solution designed to remove moisture from compressed air systems efficiently. Ideal for small to medium-sized industrial applications, this air dryer ensures clean, dry air to protect downstream equipment and improve productivity.
With advanced air-cooling technology, compact design, and energy-efficient components, the 100 CFM refrigerated air dryer (air cooled) is the perfect choice for users seeking reliability, efficiency, and long service life.
The air is pure, no secondary pollution, integrated skid-mounted design, compact structure, stable dew point, remarkable water removal effect.

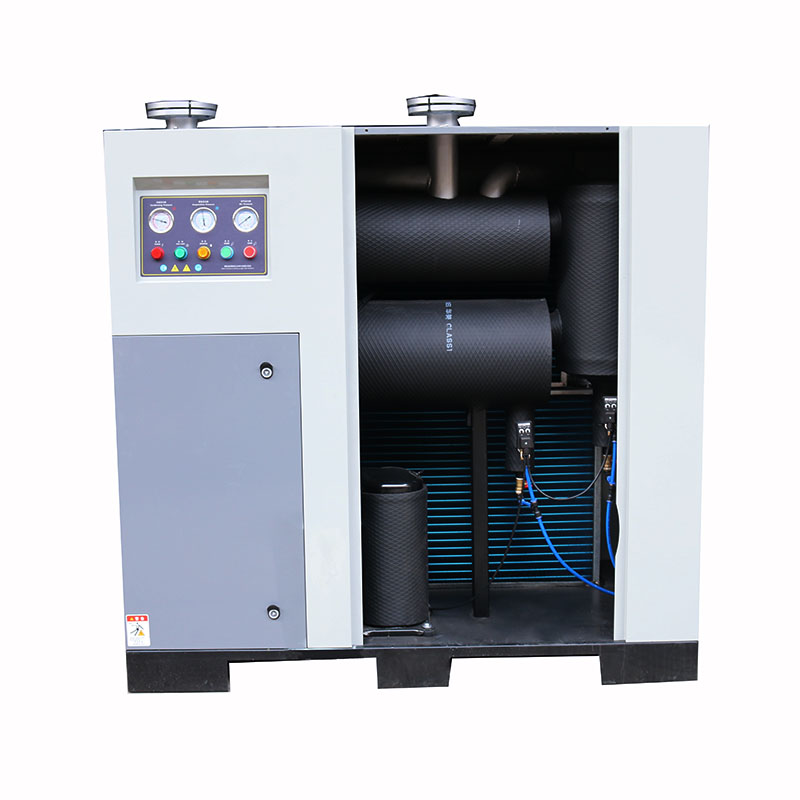

Stainless steel plate heat exchanger with high heat exchange efficiency and compact structure.
Independent stainless steel steam-water separator with high water separation efficiency, timely separates condensed water and other impurities from compressed air and discharges them out of the machine.
The whole machine is made of stainless steel or aluminum alloy, which will not rust and prevent secondary contamination of compressed air.
Single chip intelligent control, real-time display of evaporation temperature, including over-temperature alarm, electrical fault, high pressure alarm, low pressure alarm and other functions.
