Supports customization with a processing capacity of up to 17660 CFM (cubic feet per minute).
Applicable fluids: compressed air, non-corrosive air
Rated inlet pressure: 0.7MPa (0.6MPa~1.0MPa is allowed,other pressure levels are available for customization)
Rated inlet temperature: 10℃~30℃ (limit inlet temperature: ≤40℃)
Inlet air dew point: ≤15℃
Outlet pressure dew point: ≤-20℃ (-40℃ optional)
Adsorbent: activated alumina + high-performance molecular sieve
Rated ambient temperature: 35℃ (2℃~45℃ can be used)

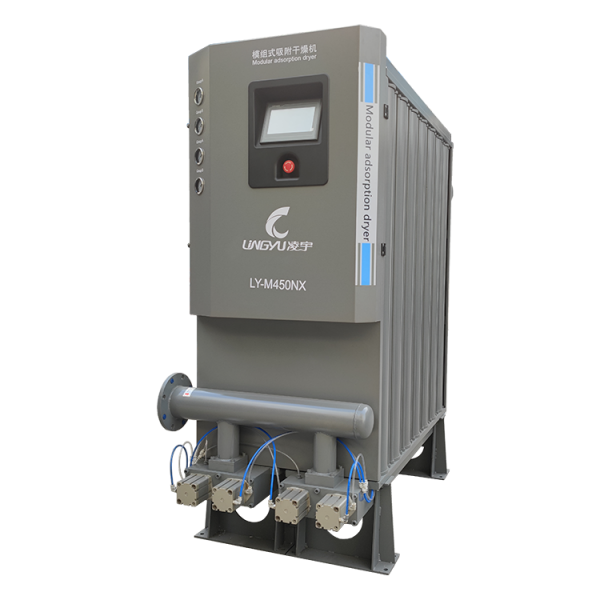

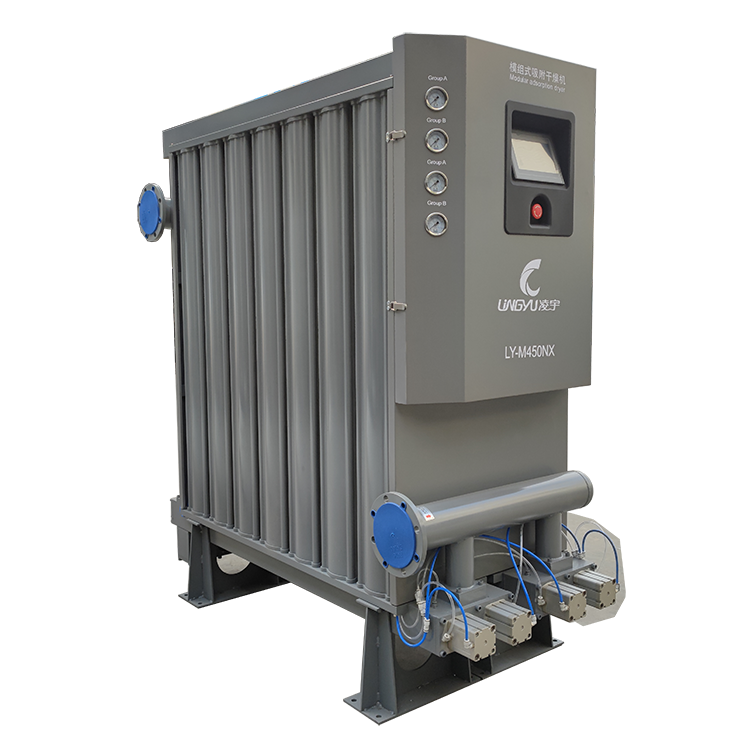

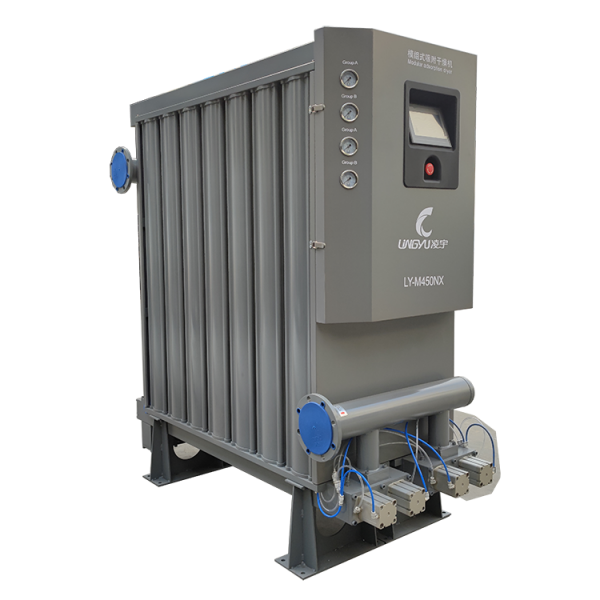

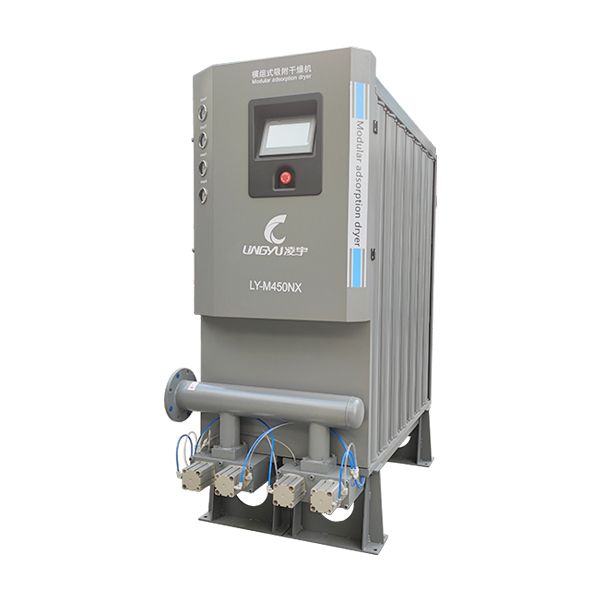

The Modular Adsorption Air Dryer is designed to deliver clean, dry, and reliable compressed air through an energy-saving adsorption regeneration process. During operation, moisture in the compressed air is absorbed by high-quality desiccant, while a controlled portion of the dried air is used to regenerate the adsorbent and restore its drying capacity. With regeneration gas consumption maintained at only 5%–8%, the system achieves stable performance while reducing overall operating costs.
To ensure air quality, all compressed-air contact surfaces are treated with oxidation and rust prevention technology, which effectively minimizes the risk of secondary contamination. This makes the dryer especially suitable for industries with strict air quality requirements, such as food and pharmaceutical production.

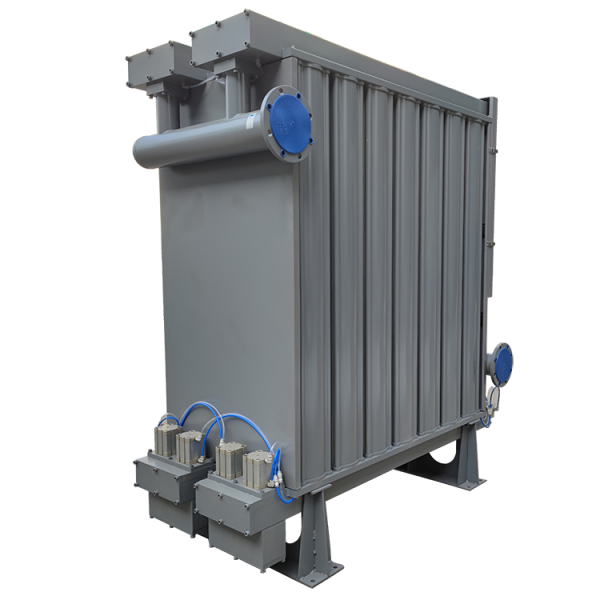

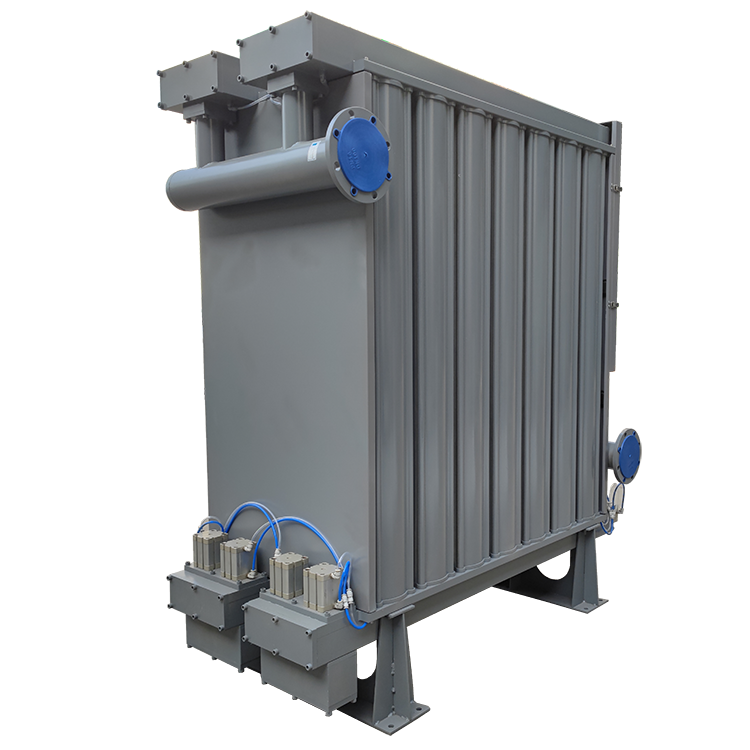

The dryer adopts an integrated aviation-grade magnesium-aluminum extruded alloy structure, combining compact size, light weight, and high durability. Its one-piece modular design allows it to pass through standard doors easily and makes installation more flexible in different working environments.
To ensure stable performance and long service life, the modular adsorption air dryer is designed with the following technical features and operating advantages:
| Processing Capacity (m³/min) | Connection Size | Equipment Weight (kg) | Power Supply and Voltage (V/Hz) | Dimensions (mm) L × W × H |
|---|---|---|---|---|
| 1.5 | G1″ | 35 | 220/50 | 460 × 300 × 752 |
| 2.5 | G1″ | 60 | 220/50 | 460 × 300 × 1246 |
| 3.8 | G1″ | 70 | 220/50 | 460 × 300 × 1546 |
| 6.5 | G1-2″ | 190 | 220/50 | 400 × 778 × 1735 |
| 10.5 | G2″ | 285 | 220/50 | 400 × 952 × 1735 |
| 13.5 | G2-12″ | 375 | 220/50 | 400 × 1126 × 1735 |
| 17.0 | G2-2″ | 470 | 220/50 | 400 × 1300 × 1735 |
| 21.5 | G2-2″ | 565 | 220/50 | 400 × 1474 × 1735 |
| 25.0 | G2-12″ | 660 | 220/50 | 400 × 1648 × 1735 |
| 28.5 | DN80 | 755 | 220/50 | 762 × 1126 × 1760 |
| 37.0 | DN100 | 940 | 220/50 | 762 × 1300 × 1760 |
| 41.5 | DN100 | 1130 | 220/50 | 762 × 1474 × 1760 |
| 50.0 | DN100 | 1320 | 220/50 | 762 × 1648 × 1760 |
| 55.0 | DN125 | 1510 | 220/50 | 762 × 1884 × 1760 |
Note: For air volumes above 55 m³/min, or for special requirements related to specifications, materials, or temperature, please contact our company or dealer for technical support. The above data is for reference only and may change without prior notice. For other specifications, please contact our company directly.
In India’s hot climate, seasonal monsoon humidity, and fast-growing manufacturing environment, compressed air systems often require reliable low-dew-point drying together with clean air quality, compact installation, and low maintenance. The Modular Adsorption Air Dryer is designed for industrial users that need stable dry compressed air, reduced operating cost, and flexible installation in space-limited production areas. With regeneration gas consumption of only 5%–8%, oxidation- and rust-prevention treatment on compressed-air contact surfaces, and a compact modular structure, it is well suited for Indian factories that need efficient and contamination-controlled air treatment.
For the India page, this model is best positioned as a compact, clean-air, low-maintenance adsorption dryer for industries where installation flexibility and air cleanliness are important. It is especially suitable for food processing, pharmaceutical support areas, electronics assembly, general manufacturing workshops, and distributed plant air systems. In India, those sectors are strong enough that this positioning is more natural than presenting the unit as a heavy-duty centralized dryer.
